The charging pile generally provides two types of charging methods, conventional charging and rapid charging, and people can use specific charging cards to swipe the card on the human-computer interaction interface provided by the charging pile to use the card, carry out the corresponding charging operation and print the cost data, and the charging pile display screen can show the charging amount, cost, charging time and other data.

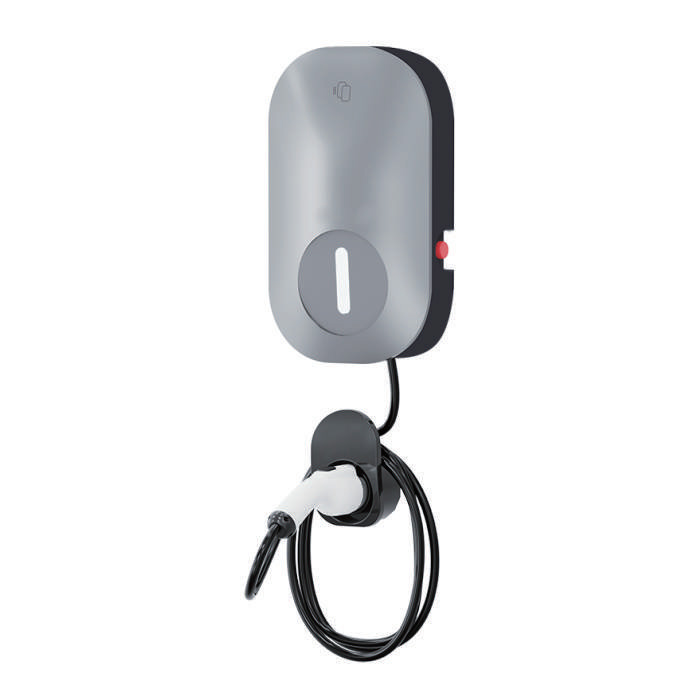

| 7KW Wall-mounted AC Single-port Charging Pile | ||
|---|---|---|
| Equipment Models | BHAC-7KW-1 | |
| Technical Parameters | ||
| AC Input | Voltage range (V) | 220±15% |
| Frequency range (Hz) | 45~66 | |
| AC Output | Voltage range (V) | 220 |
| Output Power (KW) | 7 | |
| Maximum current (A) | 32 | |
| Charging interface | 1 | |
| Configure Protection Information | Operation Instruction | Power, Charge, Fault |
| Man-machine display | No / 4.3-inch display | |
| Charging operation | Swipe the card or scan the code | |
| Metering mode | Hourly rate | |
| Communication | Ethernet (Standard Communication Protocol) | |
| Heat dissipation control | Natural Cooling | |
| Protection level | IP65 | |
| Leakage protection (mA) | 30 | |
| Equipment Other Information | Reliability (MTBF) | 50000 |
| Size (W*D*H) mm | 240*65*400 | |
| Installation mode | Wall mounted type | |
| Routing mode | Up (down) into line | |
| Working Environment | Altitude (m) | ≤2000 |
| Operating temperature(℃) | -20~50 | |
| Storage temperature(℃) | -40~70 | |
| Average relative humidity | 5%~95% | |
| Optional | 4G Wireless Communication, Charging gun 5m, Floor mounting bracket | |
