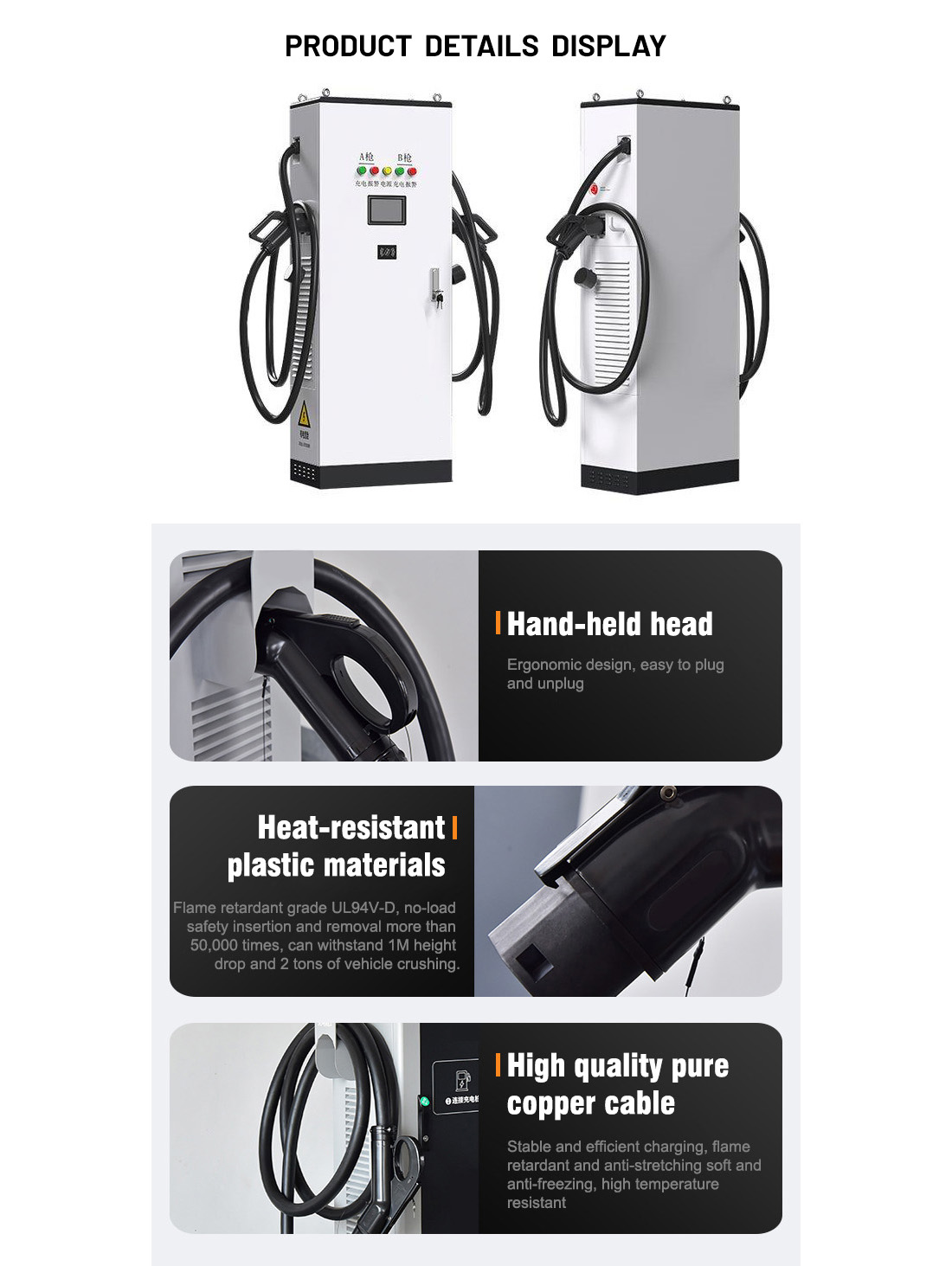

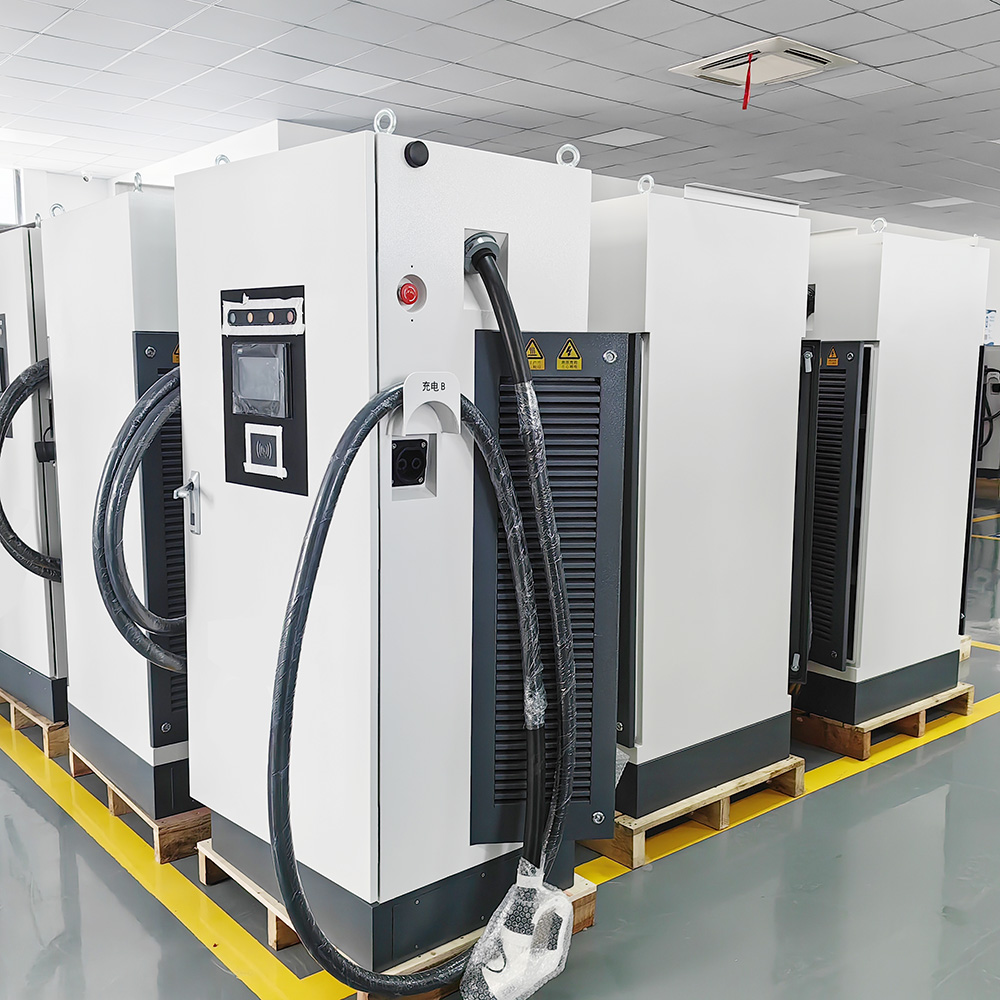

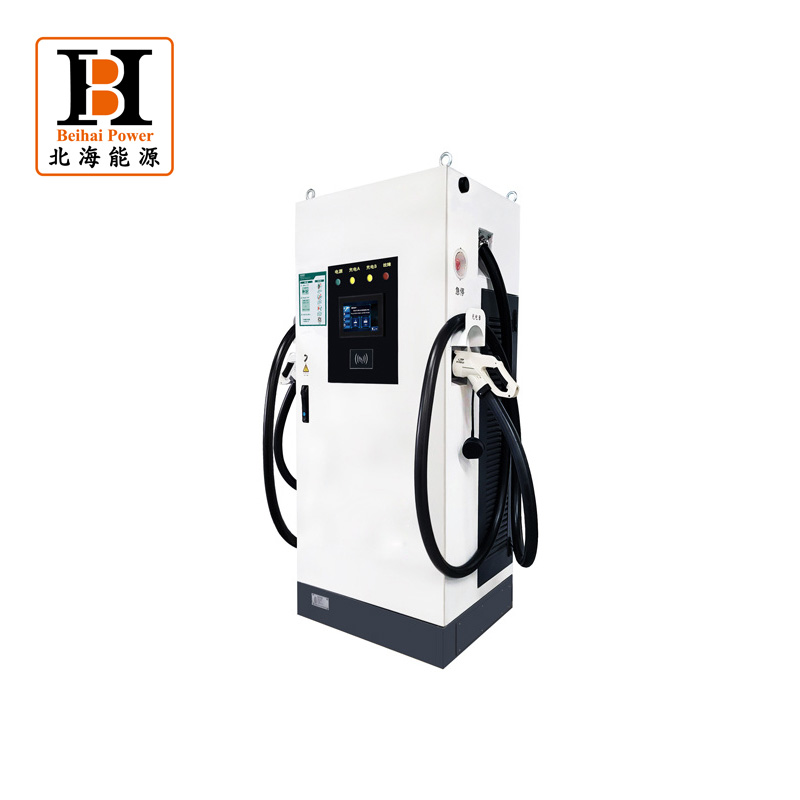

| Product name | 120KW-Body DC Charger | |
| Equipment type | HDRCDJ-120KW-2 | |
| Technical Parameter | ||
| AC input | AC Input Voltage Range (v) | 380 ± 15% |
| Frequency range (Hz) | 45~66 | |
| Input Power Factor Electricity | ≥ 0.99 | |
| Turbulent Noise Diffusion (THDI) | ≤ 5% | |
| DC Output | efficiencies | ≥ 96% |
| Output Voltage Range (V) | 200~750 | |
| Output power(KW) | 120 | |
| Maximum output current (A) | 240 | |
| charging port | 2 | |
| Charging gun length (m) | 5m | |
| Additional information on equipment | Voice (dB) | <65 |
| Stabilization accuracy | < ± 1% | |
| Voltage stabilization accuracy | ≤ ± 0.5% | |
| Output current error | ≤ ± 1% | |
| Output Voltage Error | ≤ ± 0.5% | |
| equalization unbalance | ≤ ± 5% | |

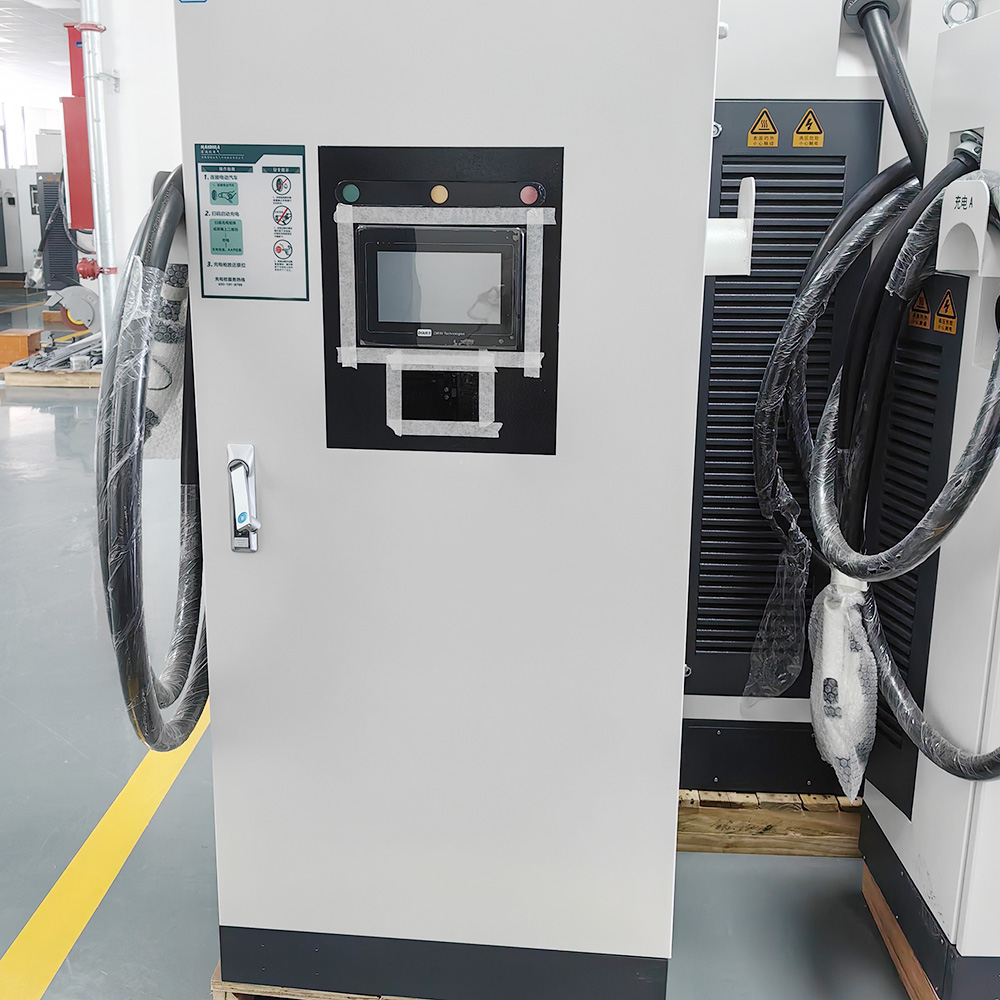

| human-machine display | 7-inch color touch screen | |
| Charging operation | Swipe or Scan | |
| Metering and billing | DC Energy Meter | |
| Operating instructions | Power, Charging, Fault | |
| Communication | Standard Communication Protocol | |
| Heat dissipation control | air cooling | |
| Protection class | IP54 | |
| BMS auxiliary power | 12V/24V | |
| Charge Power Control | Intelligent Distribution | |
| Reliability(MTBF) | 50000 | |
| Dimension(W*D*H)mm | 700*565*1630 | |
| Installation | Integral floor standing | |
| Alignment | undercurrent | |
| working environment | Altitude(m) | ≤ 2000 |
| Operating Temperature(°C) | -20~50 | |
| Storage Temperature(°C) | -20~70 | |
| Average Relative Humidity | 5%-95% | |
| Options | 4G wireless communication | charging gun 8m/10m |
