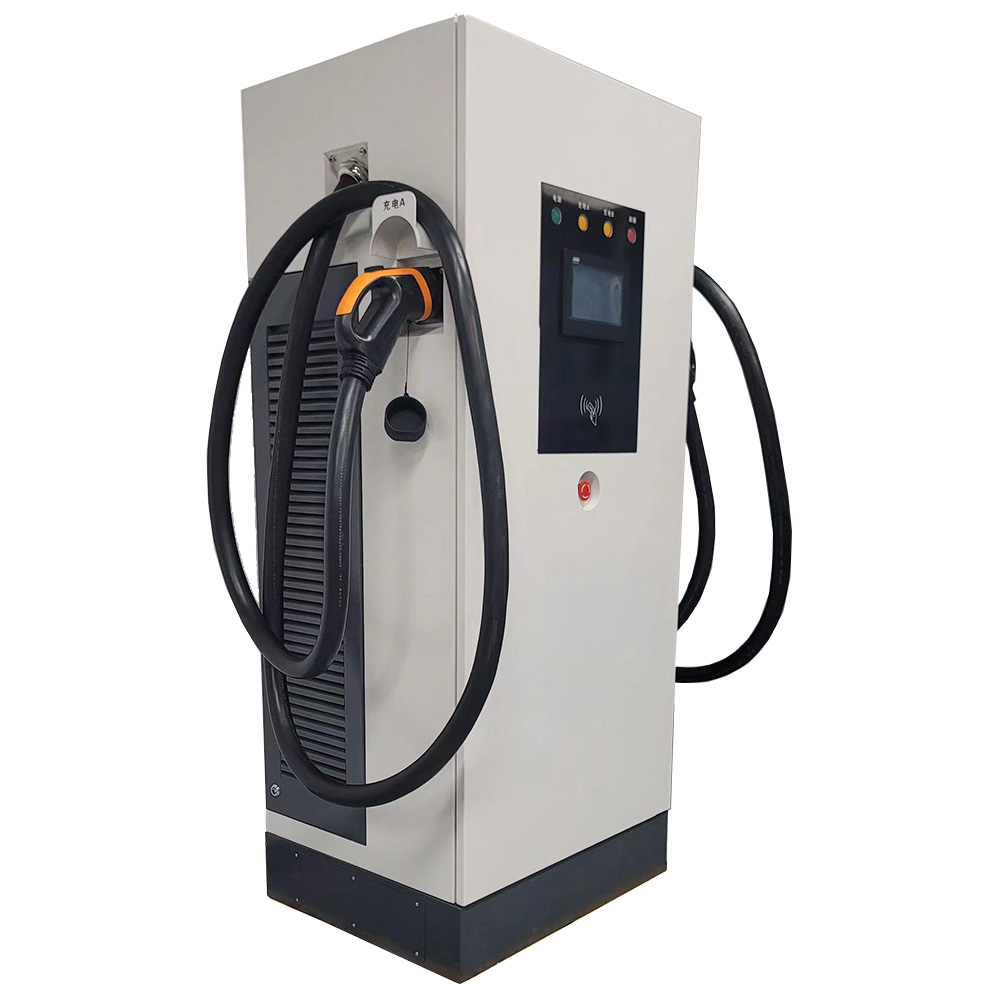

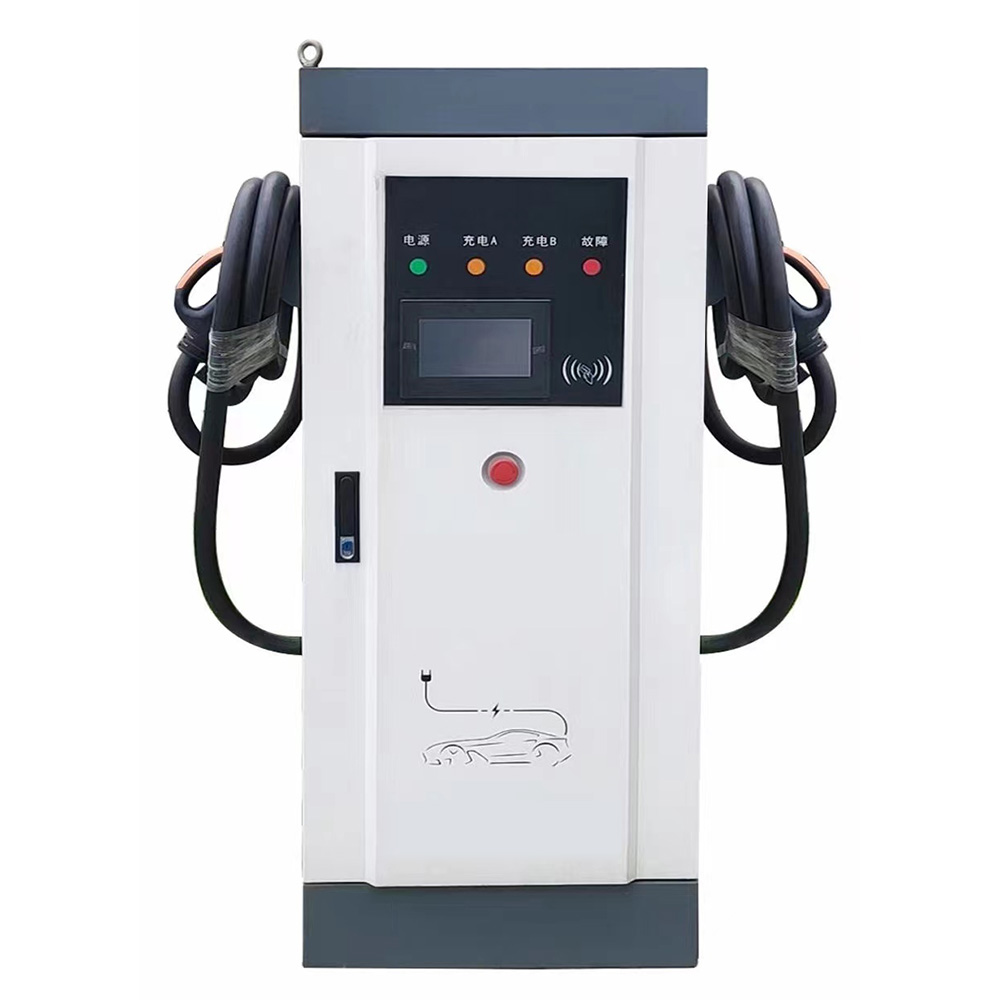

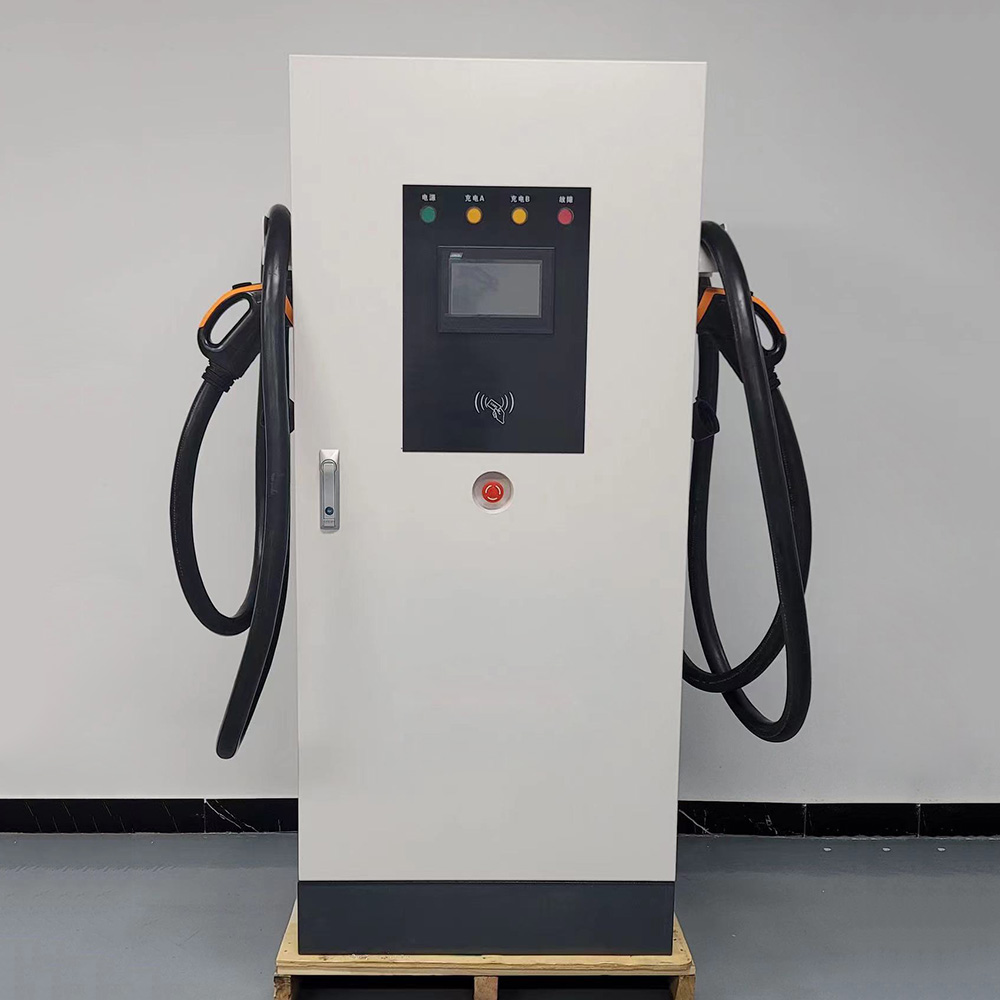

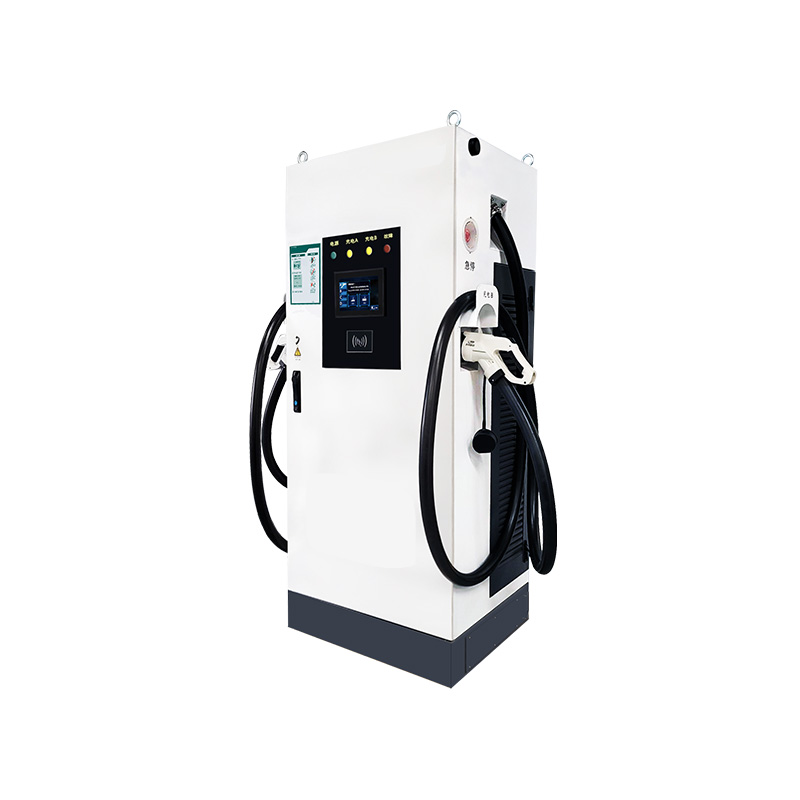

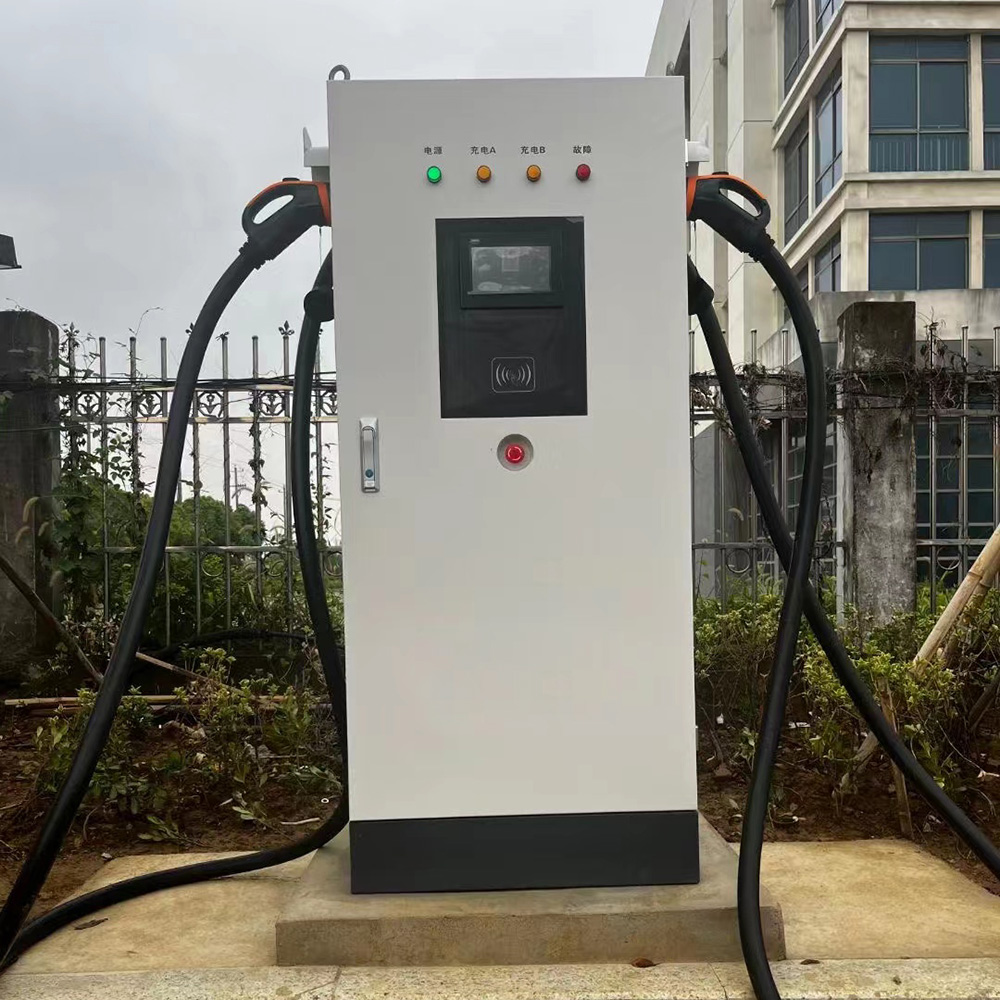

160KW DC charging pile has various forms, such as one-piece charging pile, split charging pile and multi-gun charging pile. One-piece charging pile is compact and easy to install, suitable for all kinds of car parks; split charging pile can be flexibly configured according to the need to meet the needs of different venues; multi-gun charging pile can be used to charge multiple electric vehicles at the same time, which greatly improves the charging efficiency.
The 160KW DC charging pile firstly converts the incoming AC power into DC power, and then monitors and manages the charging process through the intelligent control system. The charging pile is equipped with a power converter inside, which can adjust the output voltage and current according to the charging demand of the electric vehicle to achieve fast and safe charging. At the same time, the charging pile also has a variety of protection functions, such as over-current, over-voltage, under-voltage and other protection, to ensure the safety and reliability of the charging process.
| 160KW DC charging pile Specification | ||
| Equipment Models | BHDC-160KW | |
| Technical Parameters | ||
| AC Input | Voltage range (V) | 380±15% |
| Frequency range (Hz) | 45~66 | |
| Input power factor | ≥0.99 | |
| Current harmonics (THDI) | ≤5% | |
| DC Output | Efficiency | ≥96% |
| Voltage range (V) | 200~750 | |
| Output Power (KW) | 160 | |
| Maximum current (A) | 320 | |
| Charging interface | 1/2 | |
| Charge gun length (m) | 5 | |
| Protection & Control | Noise (dB) | <65 |
| Man-machine display | 7 inches color touch screen | |
| Charging operation | Plug and play/scan code | |
| Protection level | IP54 | |
| Cooling mode | Air Cooling | |
| Size (W*D*H) mm | 990*750*1700 | |
| Installation mode | Floor-standing | |
| Working Temp (℃) | -20~50 | |
| Storage Temp (℃) | -20~70 | |
| Relative humidity | 5%~95% | |
Electric vehicle DC charging pile has fast charging ability, which can provide high power energy to shorten charging time significantly.
Suitable for various models and brands of electric vehicles, enhancing versatility and user convenience.
Built-in mechanisms for over-current, over-voltage, and short-circuit protection to ensure process stability.
Features remote monitoring, payment systems, and user identification for real-time status tracking.
Connected to management systems for centralized control, improving efficiency and sustainability.
DC charging piles are widely used in public charging stations, highway service areas, commercial centers and other places, and can provide fast charging services for electric vehicles. With the popularization of electric vehicles and the continuous development of technology, the application range of DC charging piles will gradually expand.
