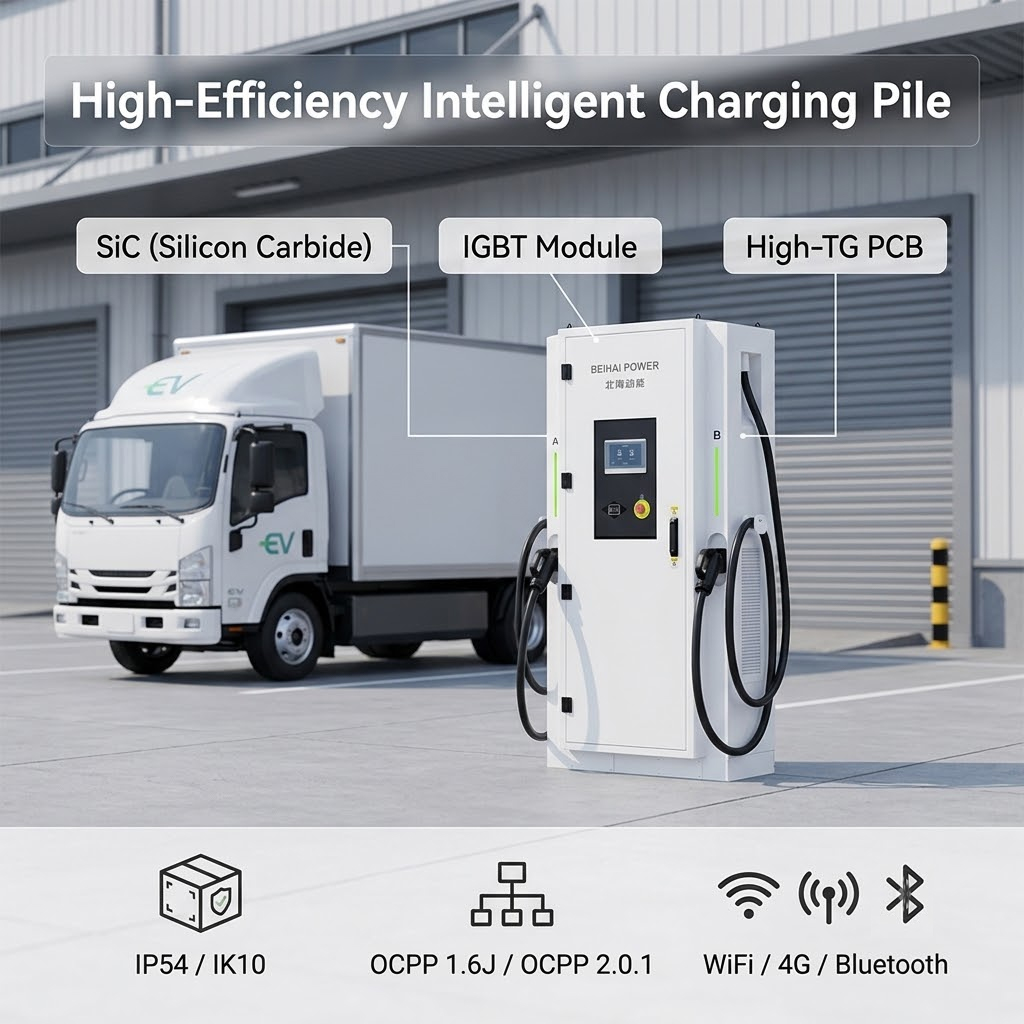

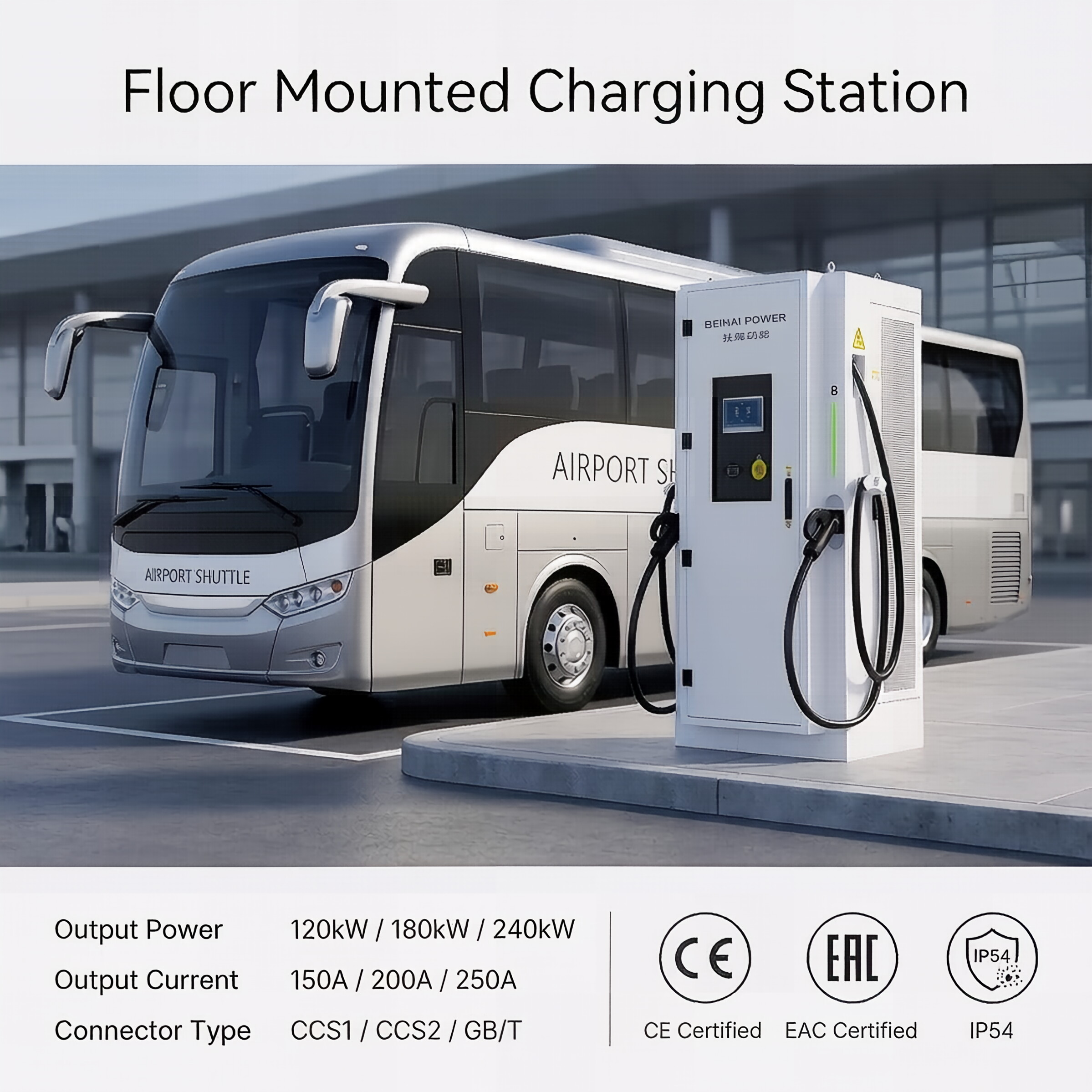

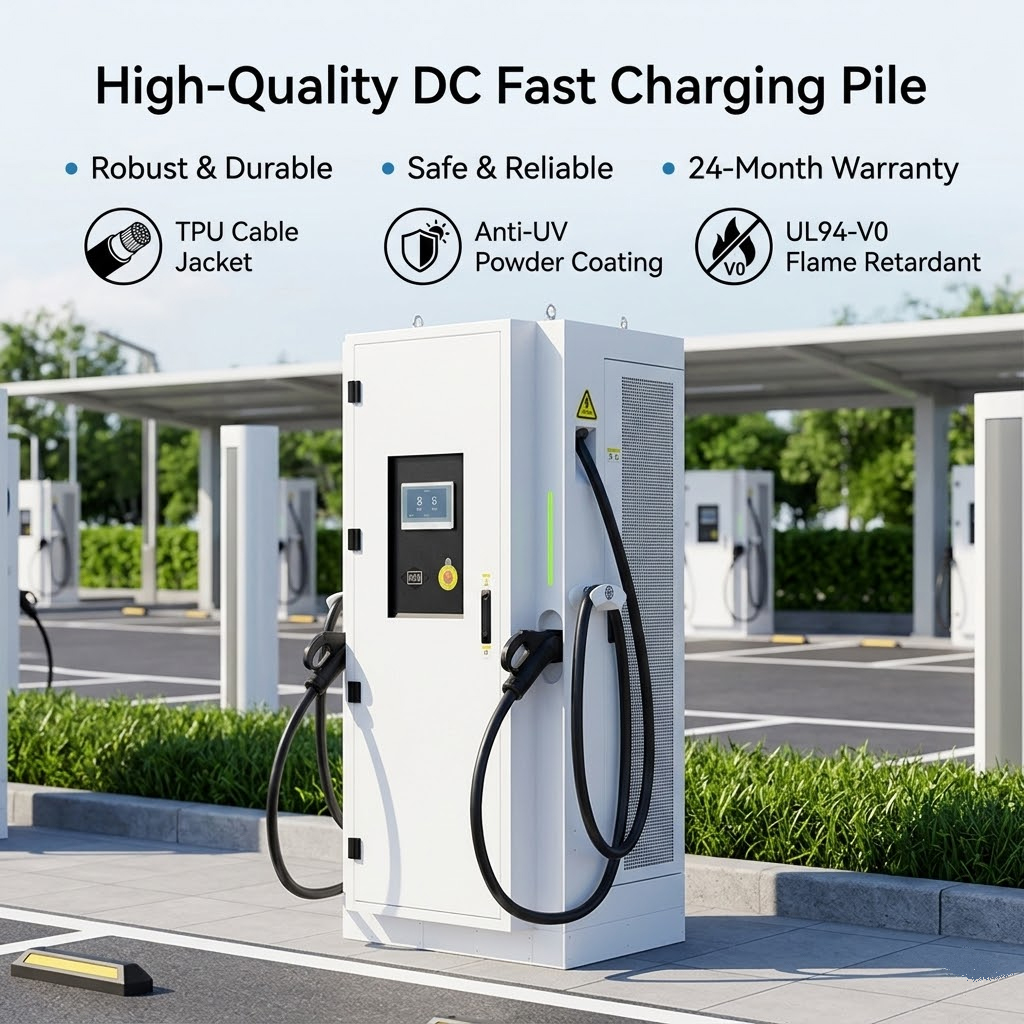

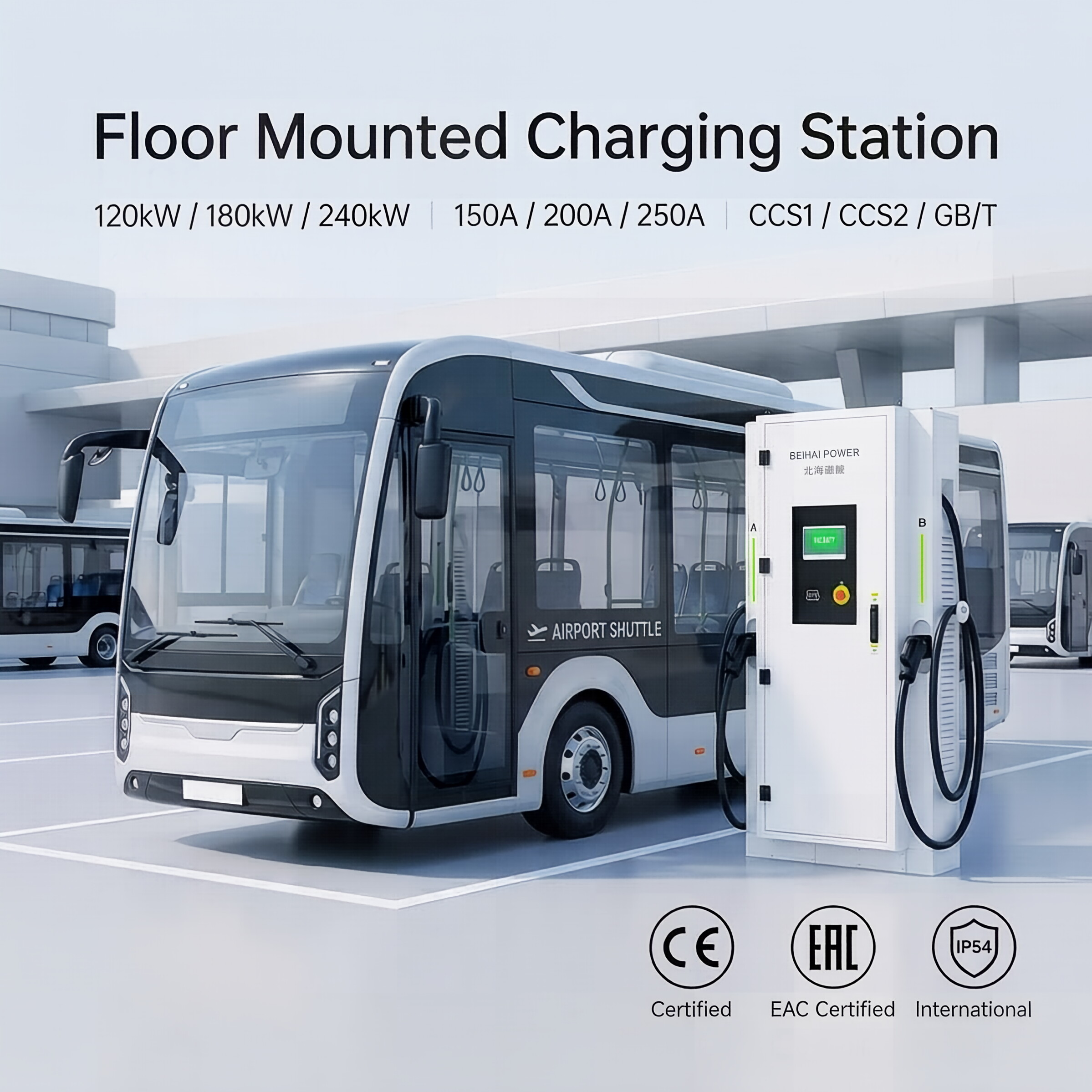

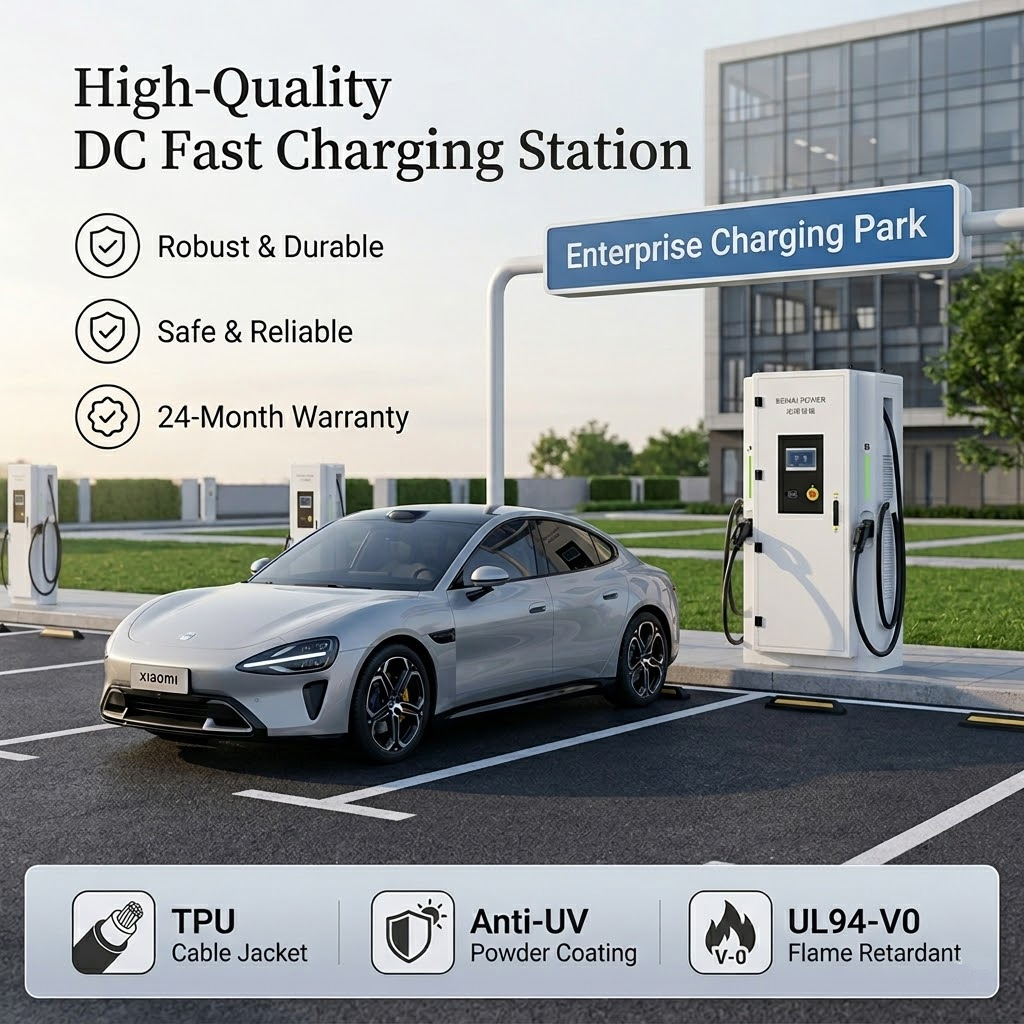

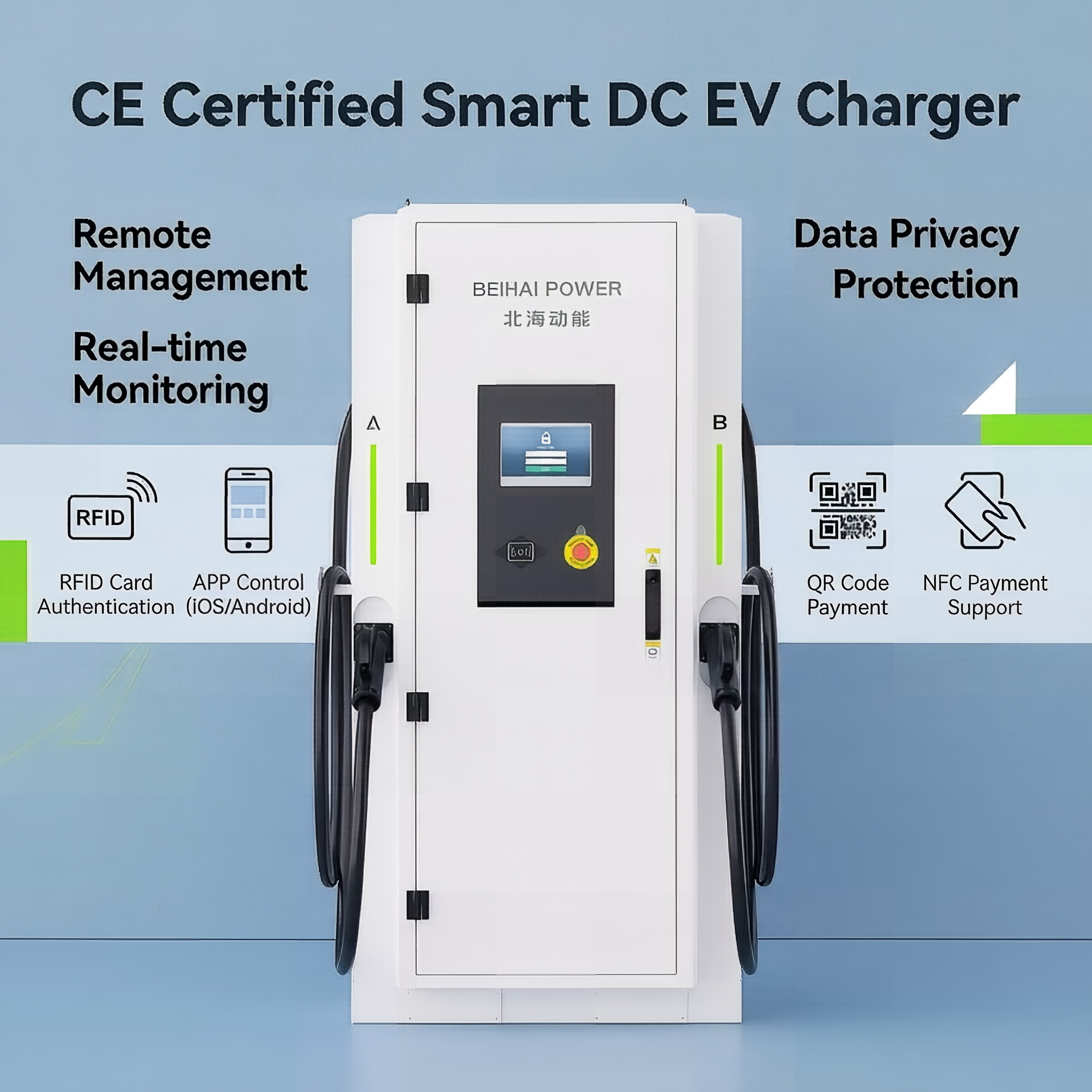

The 180KW electric bus charging station is equipped with fast-charging technology, delivering high-speed power transfer to significantly reduce charging times. It supports a wide voltage range, making it versatile for various applications, while also incorporating essential safety features such as overvoltage, overcurrent, and short-circuit protection, ensuring both the charger and the devices are safeguarded. Its compact and robust design makes it suitable for both indoor and outdoor environments, withstanding harsh conditions while remaining easy to install and operate. The integrated smart charging management system offers real-time monitoring, allowing users to track and manage the charging process efficiently. Ideal for EVs, buses, forklifts, and other DC-powered equipment, the Dual Charging Interface DC Charger offers a reliable, high-performance solution for modern charging needs.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | 745mm x 630mm x 1750mm |
| Weight | 360kg | |
| Length of charging cable | 5m | |
| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS | |
| Electrical Indicators | Input Voltage | 400VAC / 480VAC (3P + N + PE) |
| Input Frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output Current | 1 - 250A | |
| Rated Power | ≤240kW | |
| Efficiency | Peak Power ≥96% | |
| Power Factor | > 0.98 | |
| Communication Protocol | OCPP, State Grid, YKC, Xiaoju and other operating platforms. | |
| Functional Design | Display | 7'' LCD with touch screen |
| Access Control | RFID: ISO/IEC 14443A/B || POS machine (Optional) | |
| Communication | WIFI || Ethernet || 3G/4G Modem (Optional) | |
| Power Electronics Cooling | Air Cooled | |
| Work Environment | Operating Temperature | -30°C to 75°C |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety Design | Safety Protection | Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc. |
| Emergency Stop | Emergency Stop Button Disables Output Power |
