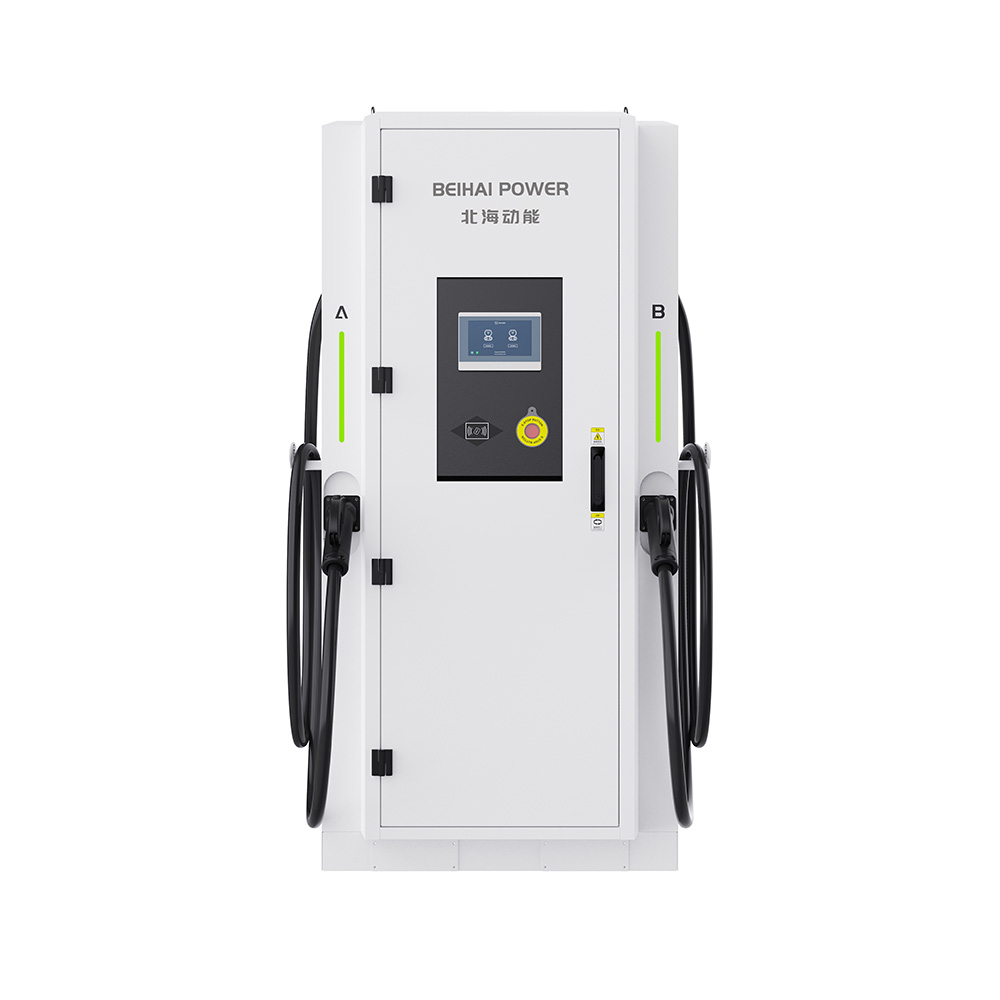

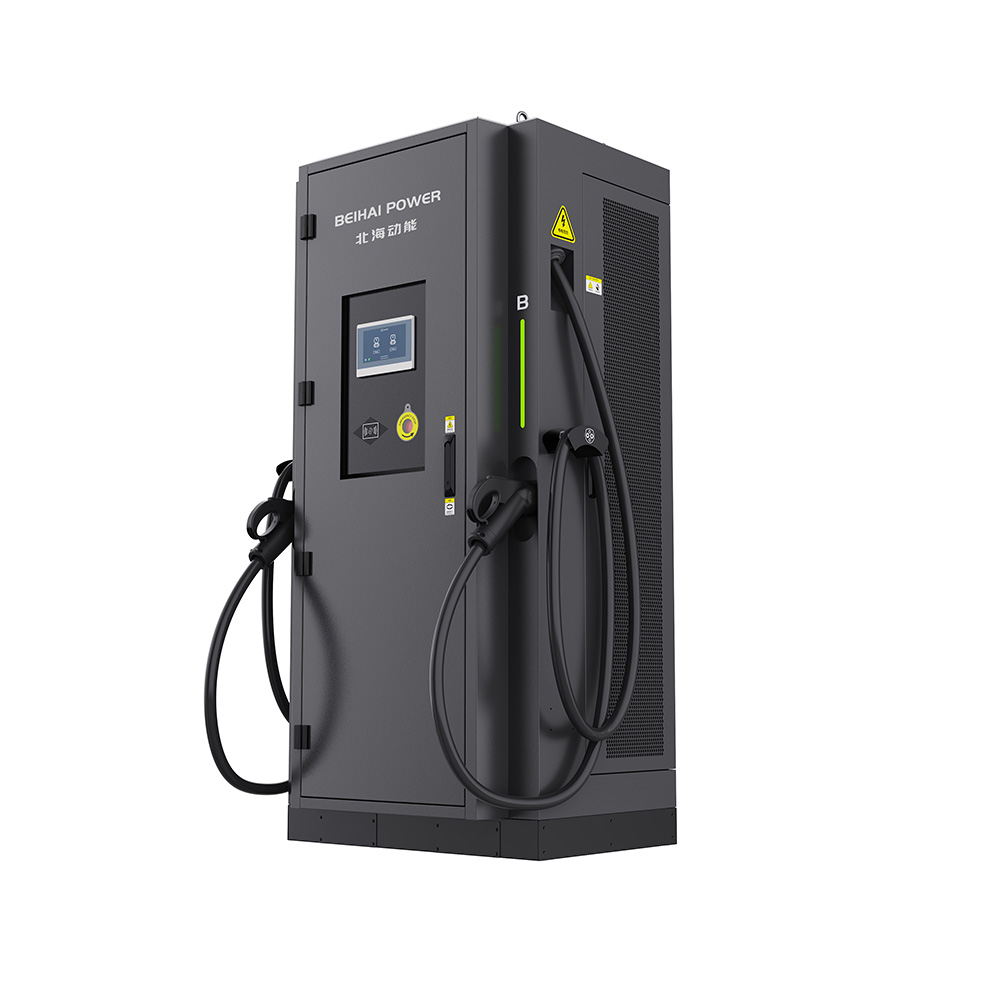

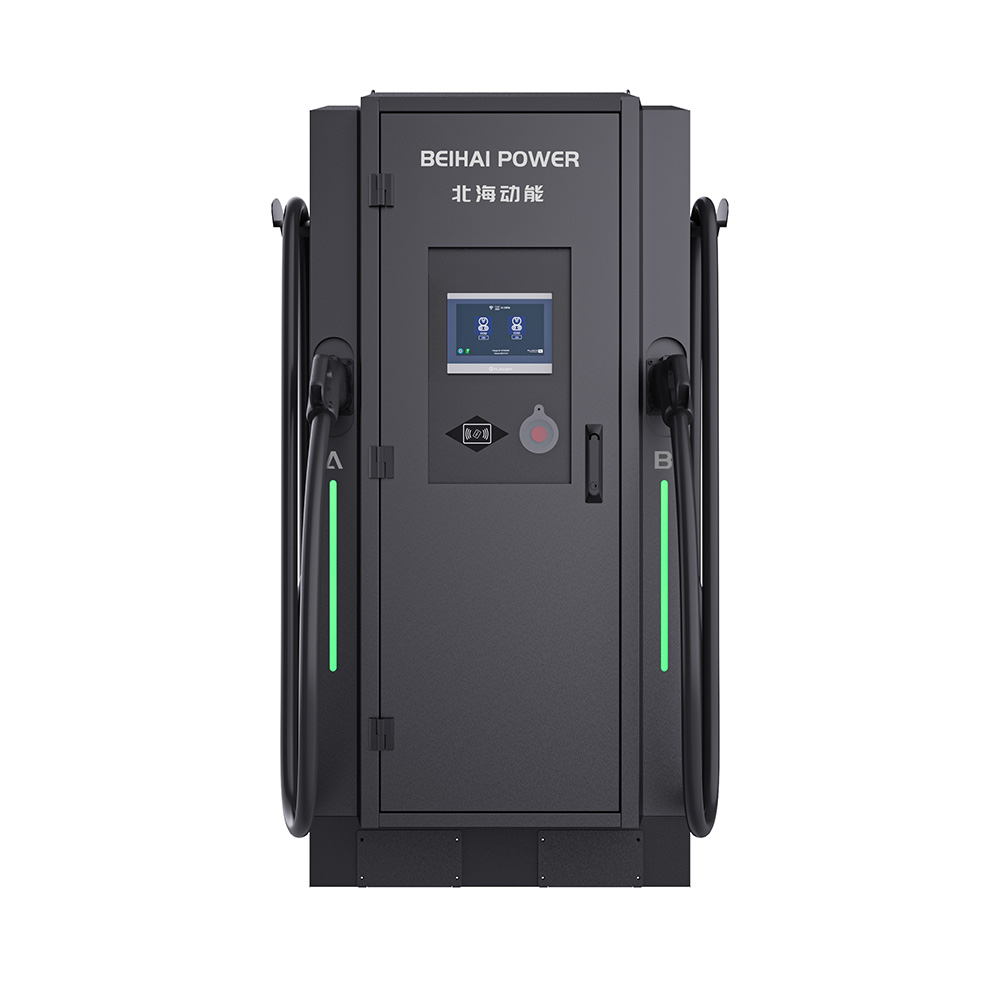

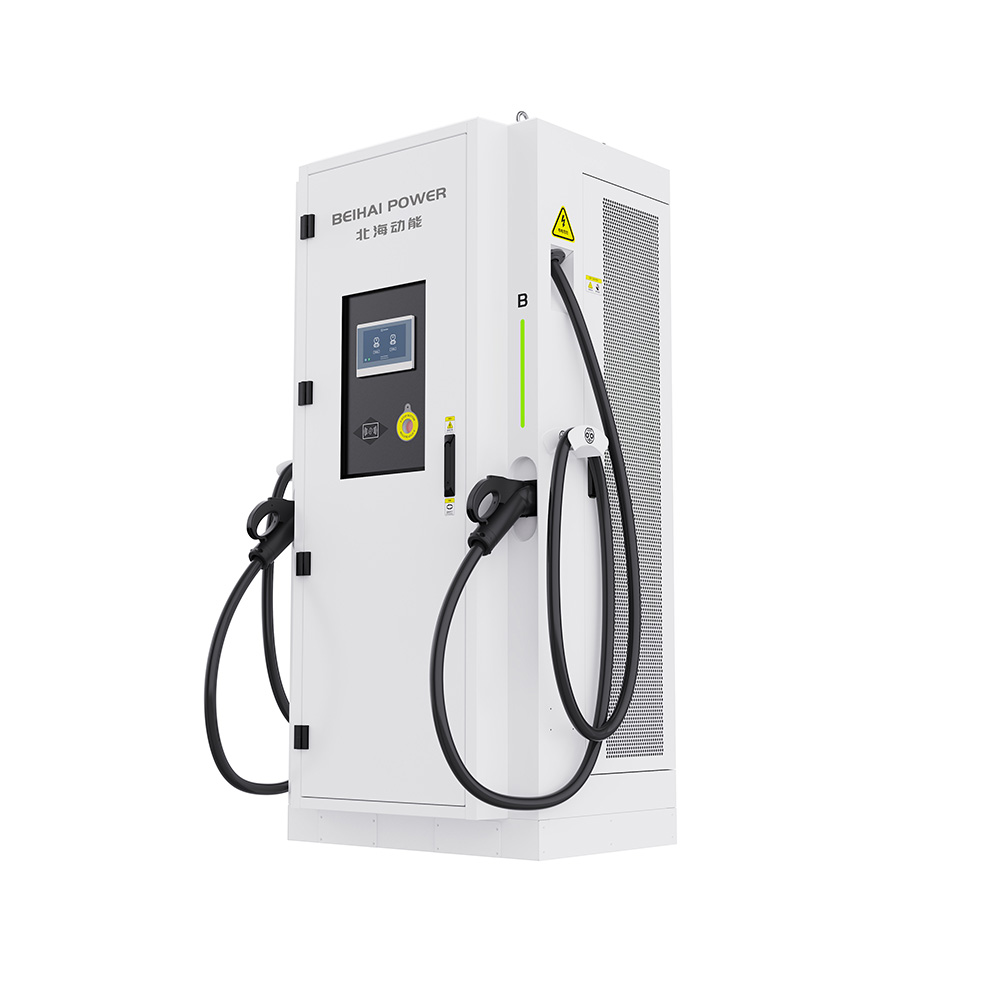

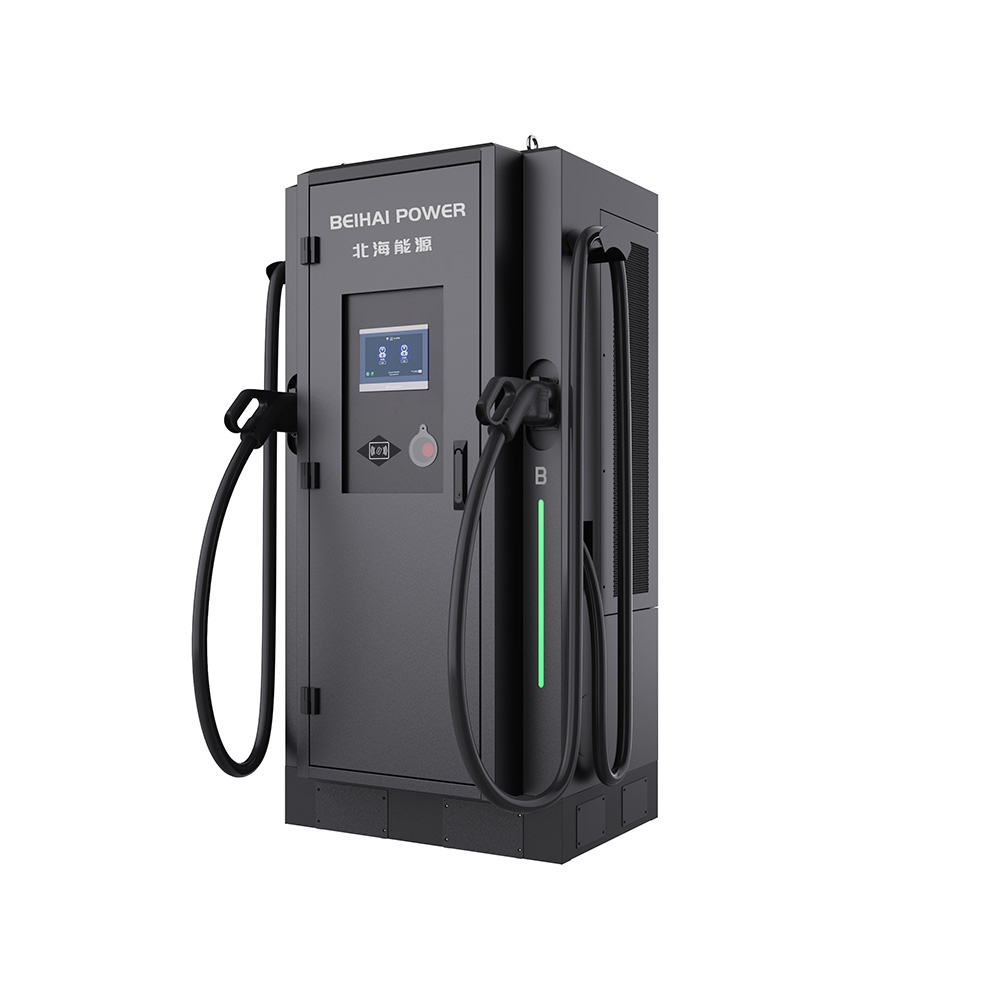

The High-Speed Electric Car Charger (240kW) offers a powerful, reliable, and efficient solution for electric vehicle charging. Compatible with CCS1, CCS2, and GB/T plugs, it ensures broad vehicle compatibility. With dual charging plugs, it can simultaneously charge two vehicles, reducing wait times and maximizing efficiency, making it perfect for high-traffic areas.
A user-friendly 7-inch touchscreen provides easy operation, while the robust IP54 enclosure ensures durability in various environments. Additionally, it features smart charging management, remote monitoring, and maintenance, making it a top choice for public charging stations, commercial spaces, and residential complexes.
With a high output of 240kW DC, this station provides ultra-fast charging speeds. It can charge compatible EVs in a fraction of the time compared to standard chargers, ensuring maximum uptime for commercial settings.
Supports widely used standards including CCS1, CCS2, and GB/T. Whether managing a fleet or offering public services, these connectors provide flexible options for both European and Asian EVs.
Equipped with dual ports, allowing two vehicles to charge simultaneously, optimizing space and reducing user wait times significantly.
Built for high-use environments with a weatherproof design and robust construction (IP54/IK10), ensuring consistent performance in harsh climates or high-traffic areas.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | 900mm x 700mm x 1900mm |
| Weight | 440kg | |
| Length of charging cable | 7m | |
| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS | |
| Electrical Indicators | Input Voltage | 400VAC / 480VAC (3P +N+PE) |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output current | 1-300A | |
| Rated power | ≤480kW | |
| Efficiency | Peak Power ≥96% | |
| Power factor | > 0.98 | |
| Communication protocol | OCPP, State Grid, YKC, Xiao ju, and others. | |
| Functional Design | Display | 7’’ LCD with touch screen |
| Access Control | RFID: ISO/IEC 14443A/B || POS machine (Optional) | |
| Communication | WIFI || Ethernet || 3G/4G Modem (Optional) | |
| Cooling | Air Cooled | |
| Work Environment | Operating temperature | -30°C to 75°C |
| Humidity | ≤ 95% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Protection | IP54 || IK10 | |
| Safety Design | Safety protection | Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc. |
| Emergency Stop | Emergency Stop Button Disables Output Power |
This charging station is an investment in the future of mobility. By adopting the latest CCS2 and CHAdeMO technologies, you provide your fleet or customers with cutting-edge solutions for fast, safe, and efficient charging. Stay ahead in an ever-evolving market with our reliable 240kW DC fast charger.
It supports the most widely used standards including CCS1, CCS2, GB/T, CHAdeMO, and NACS, making it compatible with almost all modern electric vehicles from Europe, America, and Asia.
Yes, the station features dual charging ports that allow two vehicles to charge at the same time, intelligently managing power distribution to optimize efficiency for both.
Absolutely. It is built with an IP54-rated enclosure and IK10 vandal resistance, designed to withstand harsh weather conditions and high-traffic outdoor environments.
Charging speed depends on the vehicle's battery capacity, but a 240kW output can typically provide 100km of range in just a few minutes, significantly faster than standard AC chargers.
Yes, the charger supports the OCPP communication protocol and can connect via WIFI, Ethernet, or 4G, allowing for remote monitoring, management, and firmware updates.
The system includes comprehensive safety features such as overvoltage, overcurrent, lightning, leakage, and waterproof protection, along with an easily accessible emergency stop button.
