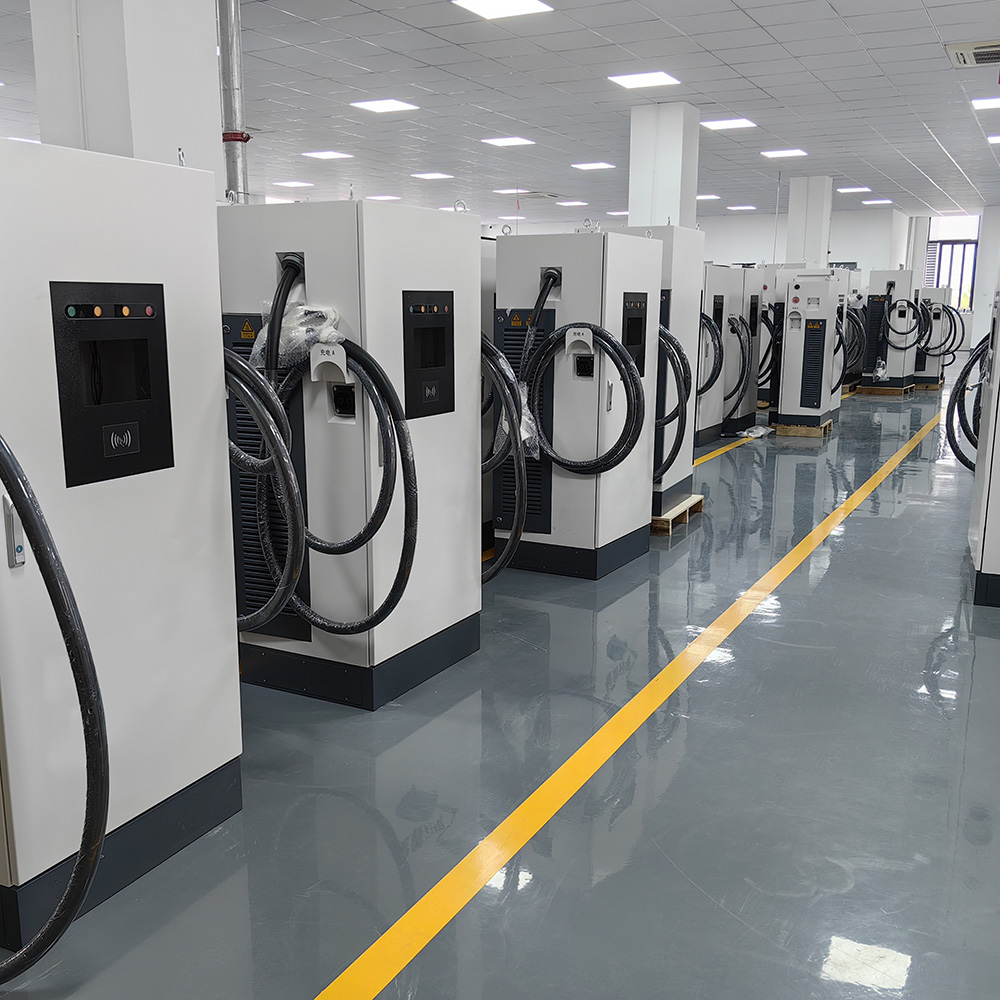

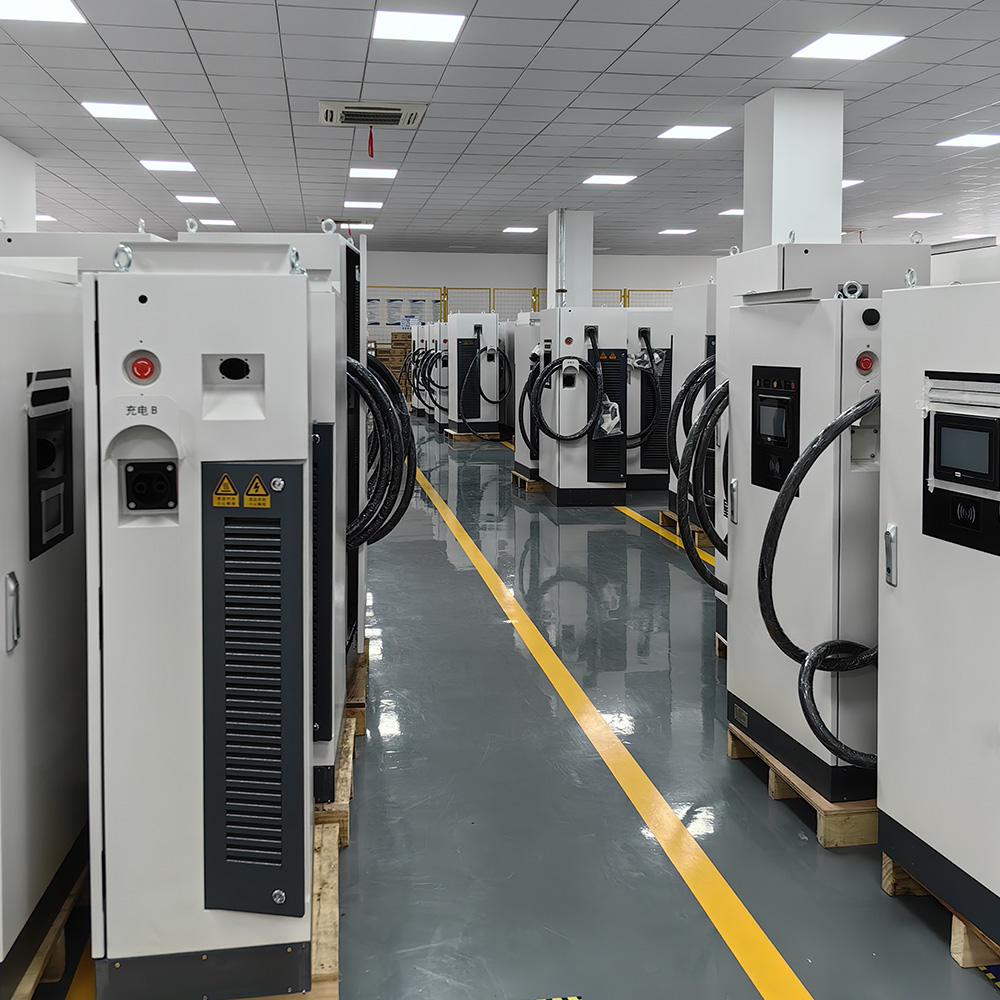

China Ocpp1.6j New Energy Fast DC Commercial EV Charger 240kw 480kw 720kw CCS2 Electric Car DC Charging Station Manufacturers, Supplier
A DC charging station, also known as a fast charging pile, is a device that can directly convert AC power to DC power and charge the power battery of an electric vehicle with high power output. Its core advantage is that it can significantly shorten the charging time and meet the needs of electric vehicle users for rapid replenishment of electric energy. In terms of technical features, the DC charging post adopts advanced power electronic technology and control technology, which can realise the rapid conversion and stable output of electric energy. Its built-in charger host includes DC/DC converter, AC/DC converter, controller and other major components, which work together to convert AC power from the grid into DC power suitable for charging the battery of the electric vehicle and deliver it directly to the battery of the electric vehicle through the charging interface.
DC charging pile is a kind of charging equipment specially designed to provide DC power supply for electric vehicles. DC charging pile can convert AC power into DC power and directly charge the power battery of electric vehicles, which has higher charging power and larger voltage and current adjustment range, so it can realise rapid charging and provide electric vehicles with fast replenishment of electric power. In the process of charging, the DC charging pile can utilize the electric energy more efficiently and reduce the energy loss, and the DC charging pile is applicable to various models and brands of electric vehicles with wider compatibility.
DC charging piles can be classified in different dimensions, such as power size, number of charging guns, structural form, and installation method. Among them, according to the structure form more mainstream classification is the DC charging pile is divided into two kinds: integrated DC charging pile and split DC charging pile; according to the number of charging gun more mainstream classification is the DC charging pile is divided into single gun and double gun, called single gun charging pile and double gun charging pile; according to the way of installation can also be divided into floor-standing type and wall-mounted type charging pile.
Product Parameters
High-Power DC Charger Specifications
Equipment Models
BHDC-240KW
BHDC-480KW
Technical Parameters
AC Input
Voltage range (V)
380±15%
Frequency range (Hz)
45~66
Input power factor
≥0.99
Fluoro wave (THDI)
≤5%
DC Output
Workpiece ratio
≥96%
Output Voltage Range (V)
200~750
Output power (KW)
240KW
480KW
Maximum Output Current (A)
480A
480A*2
Charging interface
1/2
Charging gun length (m)
5m
Equipment Operation
Machine display
7 inch color touch screen
Charging operation
Swipe or scan
Metering and billing
DC watt-hour meter
Communication
Ethernet (Standard Communication Protocol)
Heat dissipation
Air cooling
Power control
Intelligent distribution
Size (W*D*H) mm
700*565*1630
990*750*1800
Installation method
Floor type
Product Features
AC Input
DC chargers first input AC power from the grid into a transformer, which adjusts the voltage to suit the needs of the charger's internal circuitry.
DC Output
The AC power is rectified and converted to DC power via the charging module. Multiple modules can be connected in parallel for high power requirements.
Control Unit
The technical core responsible for switching, output voltage, and current control to ensure safety and efficiency.
Metering & Interface
Records power consumption for billing. Standard-compliant interfaces ensure compatibility and safety for various electric vehicles.
Applications
DC charging piles are widely used in public charging stations, highway service areas, commercial centers and other places, providing fast replenishment for electric vehicles.
Public Transport
Vital for city buses, taxis, and operating vehicles requiring fast turnaround.
Commercial Areas
Ideal for shopping malls, hotels, industrial parks, and logistics centers.
Residential Areas
Meeting the increasing demand for fast charging in private housing developments.
Highways & Petrol Stations
Strategic installations to provide fast charging services for long-distance EV travelers.
Frequently Asked Questions
What is the main advantage of a DC charging pile over an AC charger?
DC charging piles provide much higher power by converting AC to DC internally and bypassing the vehicle's onboard charger, allowing for significantly faster charging times.
Are your DC chargers compatible with all electric vehicle brands?
Yes, our DC charging piles are designed with standard-compliant interfaces, making them compatible with a wide range of electric vehicle models and brands.
What is the difference between integrated and split DC charging piles?
Integrated piles have the power modules and user interface in one unit, while split systems separate the power conversion unit from the charging terminals, often used in large-scale stations.
How safe is the charging process with high-power DC piles?
The system includes a sophisticated control unit that monitors output voltage and current in real-time, ensuring efficient charging while protecting the vehicle's battery.
Can these chargers be installed outdoors?
Absolutely. Our DC charging piles are designed for various environments, including public parking lots, highway service areas, and commercial centers, with robust weather resistance.
How is the billing managed on these charging stations?
Each unit is equipped with a high-precision DC watt-hour meter and supports multiple operation modes like card swiping or mobile scanning for seamless energy management.
