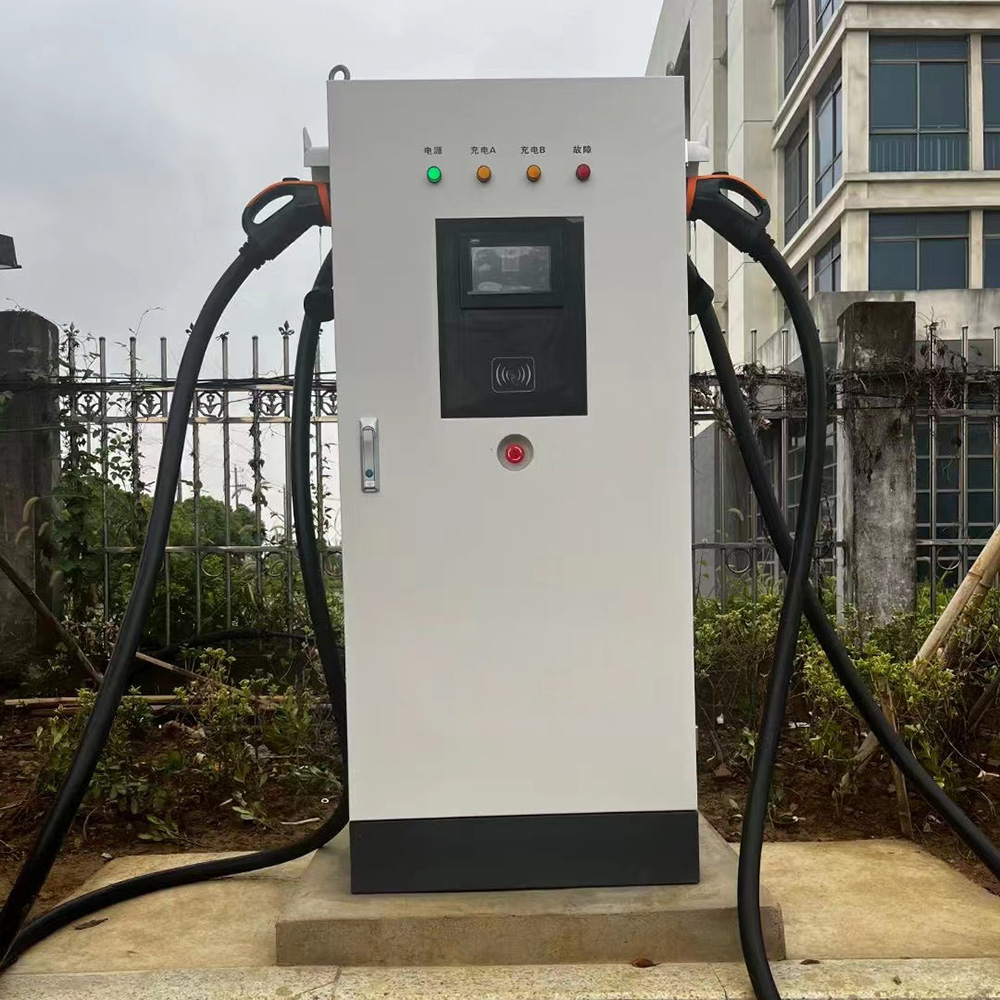

DC charging pile is a kind of charging equipment specially designed to provide DC power supply for electric vehicles. DC charging pile can convert AC power into DC power and directly charge the power battery of electric vehicles, which has higher charging power and larger voltage and current adjustment range, so it can realise rapid charging and provide electric vehicles with fast replenishment of electric power. In the process of charging, the DC charging pile can utilise the electric energy more efficiently and reduce the energy loss, making it applicable to various models and brands of electric vehicles with wider compatibility.
DC charging piles can be classified in different dimensions, such as power size, number of charging guns, structural form, and installation method. Mainstream classifications include integrated DC charging piles and split DC charging piles. According to the number of charging guns, they are divided into single gun and double gun piles. Installation methods also include floor-standing type and wall-mounted type options.
In summary, DC charging pile plays an important role in the field of electric vehicle charging with its efficient, fast and safe charging capability. With the continuous development of the electric vehicle industry and the improvement of charging infrastructure, the application prospects of DC charging piles will be even broader.
AC Input System
DC chargers input AC power from the grid into a transformer, adjusting voltage to suit internal circuitry needs.
Efficient DC Output
AC power is rectified and converted to DC via modular rectifiers. Multiple modules can work in parallel for high power.
Advanced Control Unit
The technical core responsible for switching, voltage regulation, and current control for safety and efficiency.
Metering & Billing
Precise energy consumption recording essential for professional billing and energy management.
Standardized Interface
Compatible with standard-compliant EV interfaces, ensuring safe and wide compatibility across brands.
User Interface
Equipped with high-definition touch screens and intuitive displays for seamless user operation.
DC charging piles are widely used in public charging stations, highway service areas, commercial centers and other places. As technology develops, their range continues to expand:
- 📍 Public Transport: Vital for city buses, taxis, and operating vehicles requiring fast turnaround.
- 📍 Commercial Areas: Shopping malls, hotels, and logistics parks providing convenience for customers.
- 📍 Residential: Meeting the growing demand for rapid charging in modern housing communities.
- 📍 Highways: Fast replenishment at service areas and petrol stations for long-distance travel.
❓
Frequently Asked Questions
What is the difference between AC and DC charging?
AC charging uses the vehicle's onboard charger to convert power, which is slower. DC charging converts power within the charging pile itself and supplies it directly to the battery, allowing for much faster charging speeds.
Can a 120kW DC charger work with all electric vehicles?
Yes, most modern electric vehicles are compatible with DC fast chargers. The charging pile automatically communicates with the vehicle's Battery Management System (BMS) to provide the appropriate voltage and current.
How long does it take to charge an EV with this equipment?
Charging time depends on the battery capacity of the vehicle. For many vehicles, a 120kW DC charger can charge from 20% to 80% in approximately 20-40 minutes.
What safety protections are included?
Our DC charging piles include comprehensive safety features such as over-voltage, under-voltage, over-current, short-circuit protection, leakage protection, and emergency stop functions.
Is the charging pile suitable for outdoor installation?
Yes, these piles are designed for outdoor environments with durable housing, air cooling systems, and protection against humidity and temperature fluctuations.
Does it support remote monitoring?
Yes, it features Ethernet and optional 4G wireless communication using standard protocols for remote management and billing integration.
