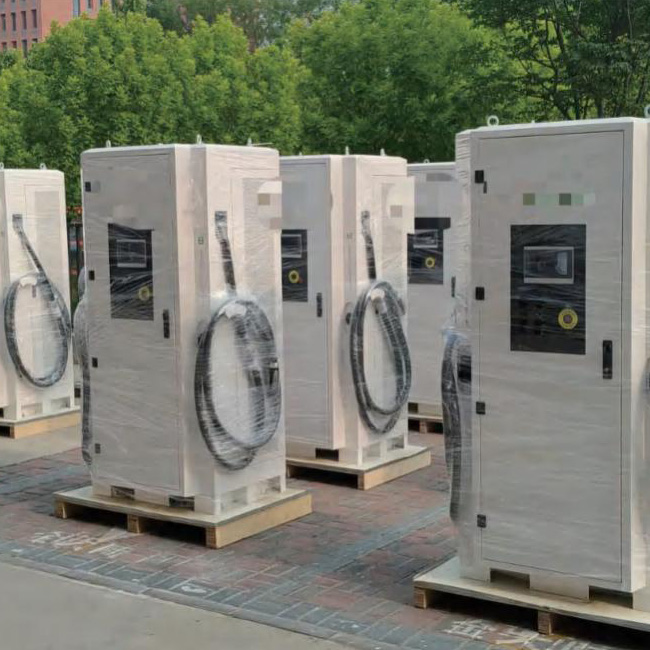

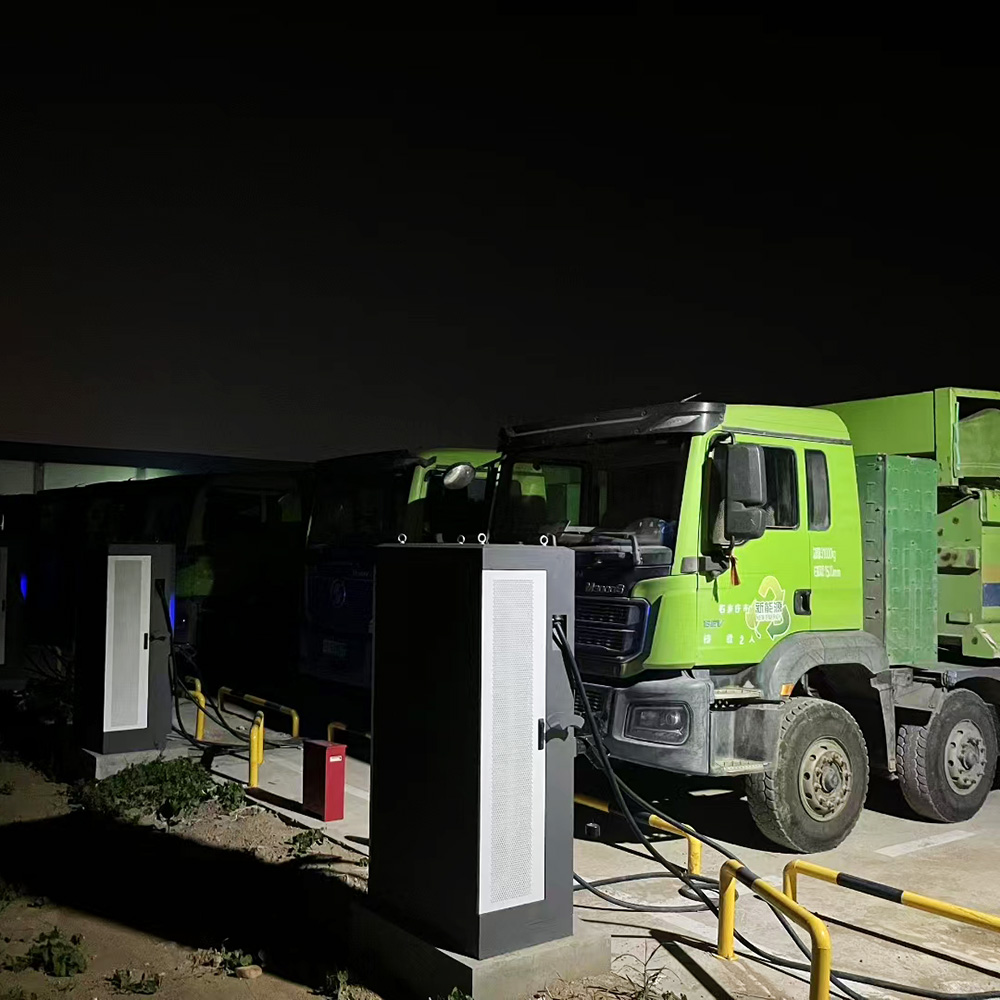

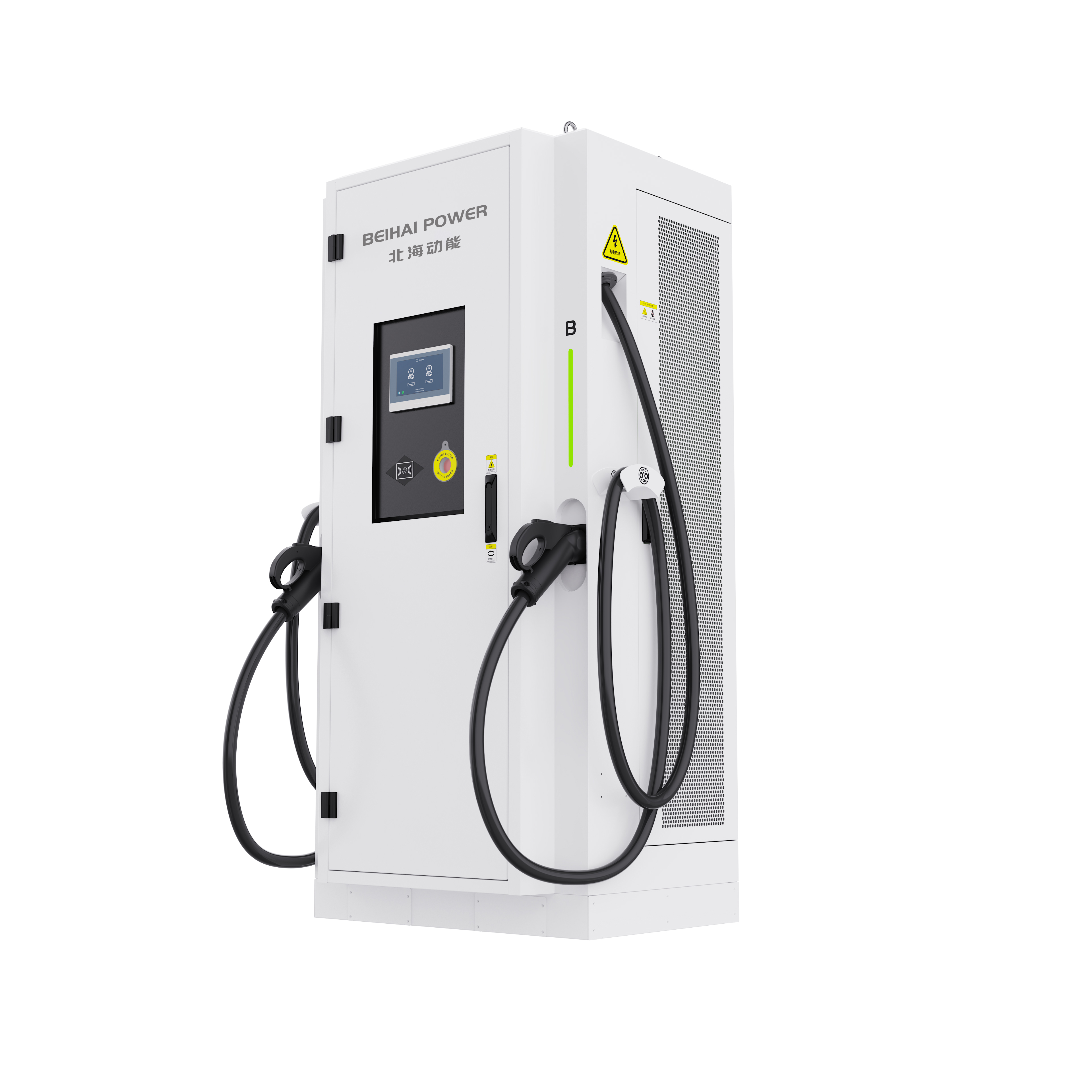

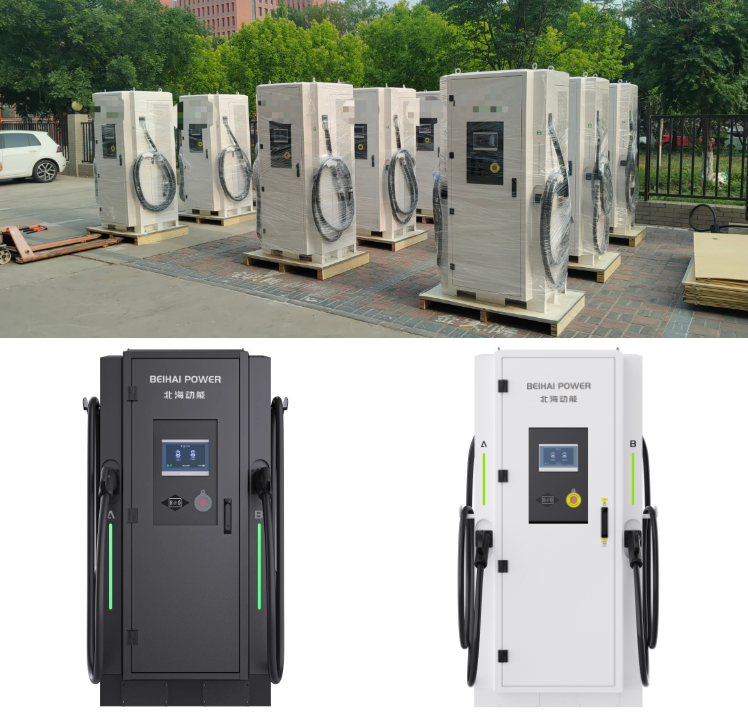

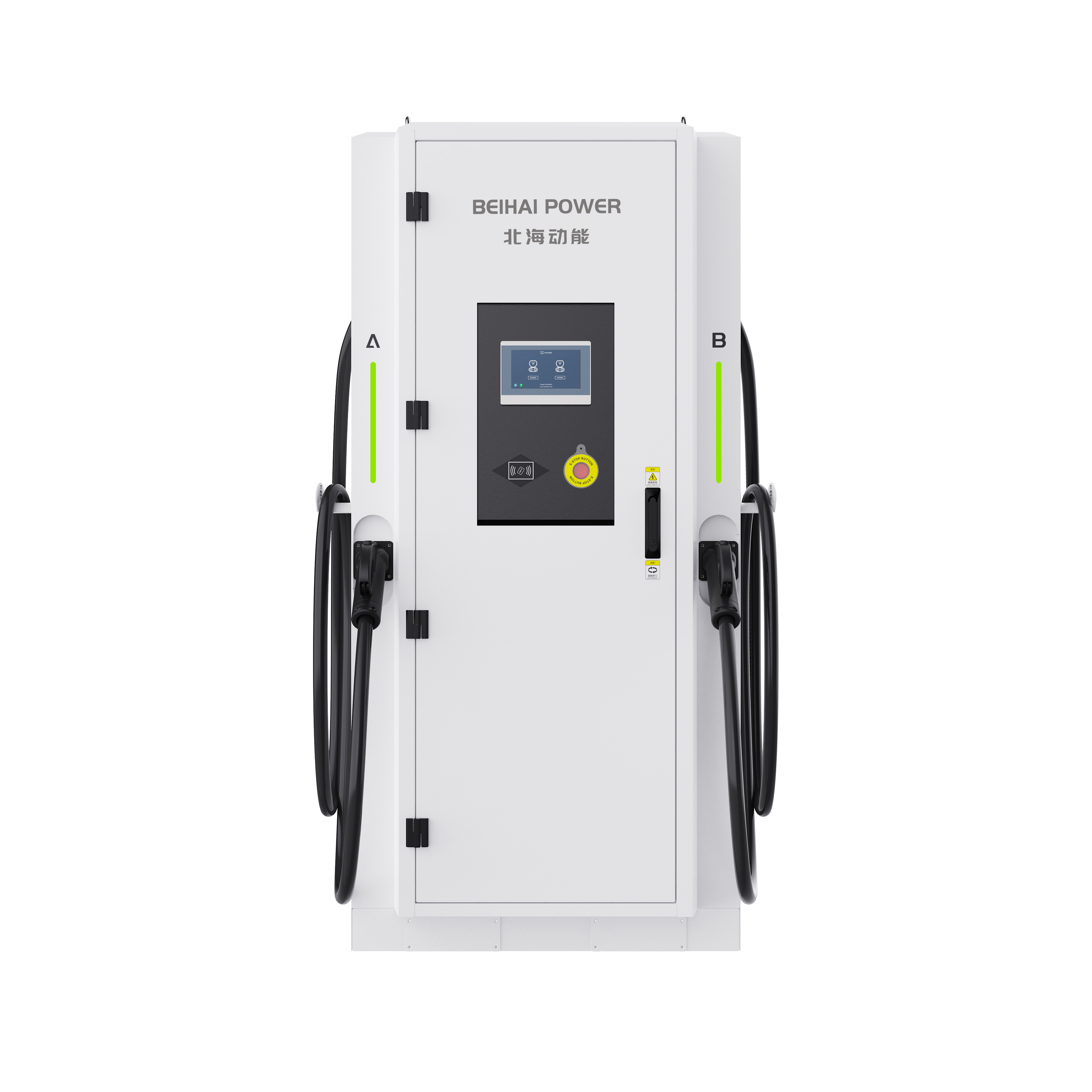

This series of dc ev charging stations boasts a rugged design and can be scaled up to 240kW (liquid cooled DC EV charging pile 480KW). The dc fast charging piles feature fast charging speeds and support dual-gun charging, enabling quick charging for high-power, large-battery-capacity vehicles.
✓ The electric car charger is equipped with an advanced control system and communication module, supporting functions such as intelligent scheduling, remote monitoring, and fault diagnosis.
✓ It supports connectivity with major mainstream charging pile management platforms.
✓ Through connection to the cloud platform, operators can monitor the real-time operating status of the electric vehicle charging stations and perform remote maintenance and upgrades.
| Category | specifications | Data parameters |
| Appearance structure | Dimensions (L x D x H) | 900mm x 700mm x 1900mm |
| Weight | 400kg | |
| Length of charging cable | 5m | |
| Connectors | CCS1 || CCS2 || CHAdeMO || GBT || NACS | |
| Electrical indicators | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC (The constant power: 300 - 1000VDC) | |
| Output current (Air Cooled) | CCS1 – 200A || CCS2 – 200A || CHAdeMO – 150A || GBT- 250A || NACS – 200A | |
| Output current (liquid cooled) | CCS2 – 500A || GBT- 800A || GBT- 600A || GBT- 400A | |
| Rated power | 240-480kW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional design | Display RFID system | 7’’ LCD with touch screen ISO/IEC 14443A/B |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
| Power Electronics Cooling | Air Cooled || liquid cooled | |
| Work environment | Operating temperature | -30°C to 55°C |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety design | Safety standard | GB/T, CCS2, CCS1, CHAdeMo, NACS |
| Safety protection | Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
