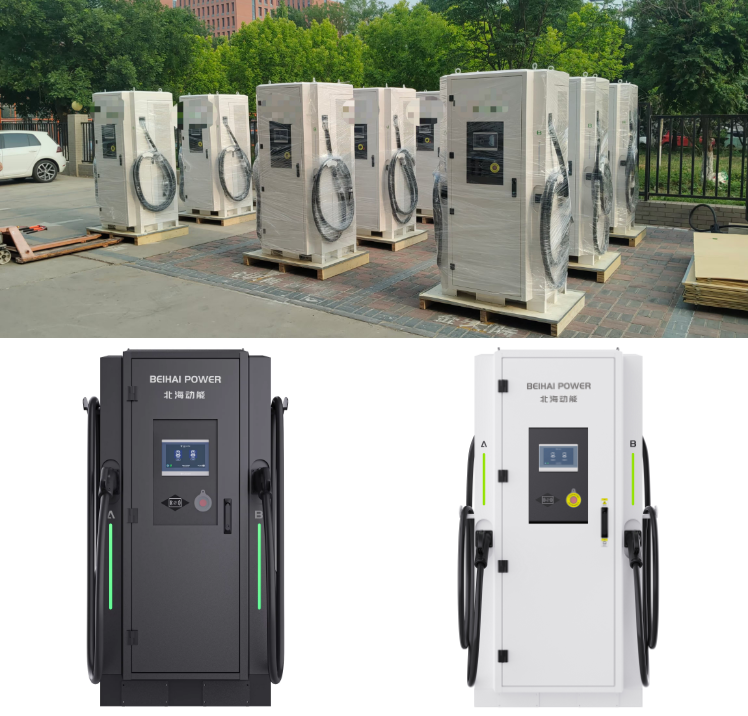

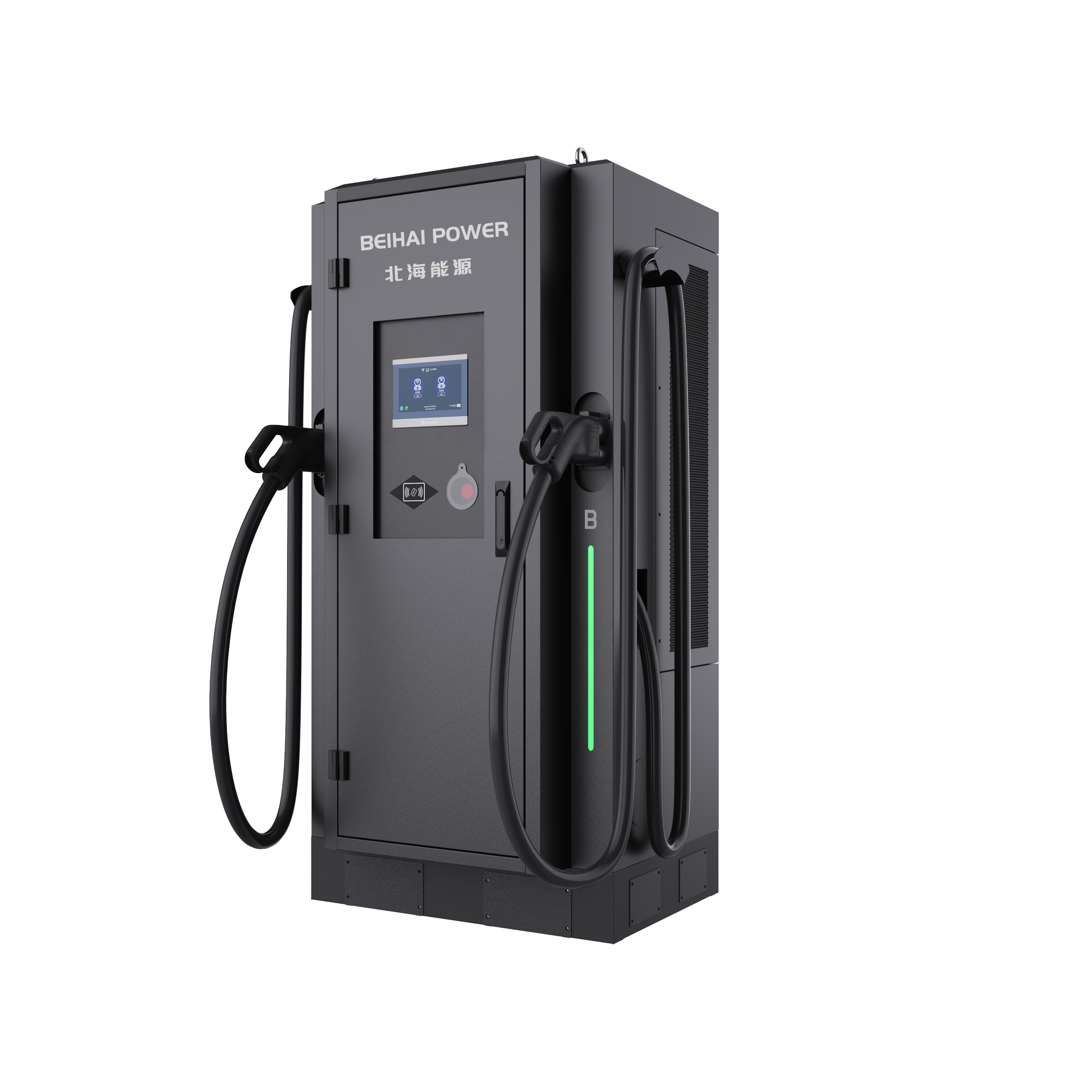

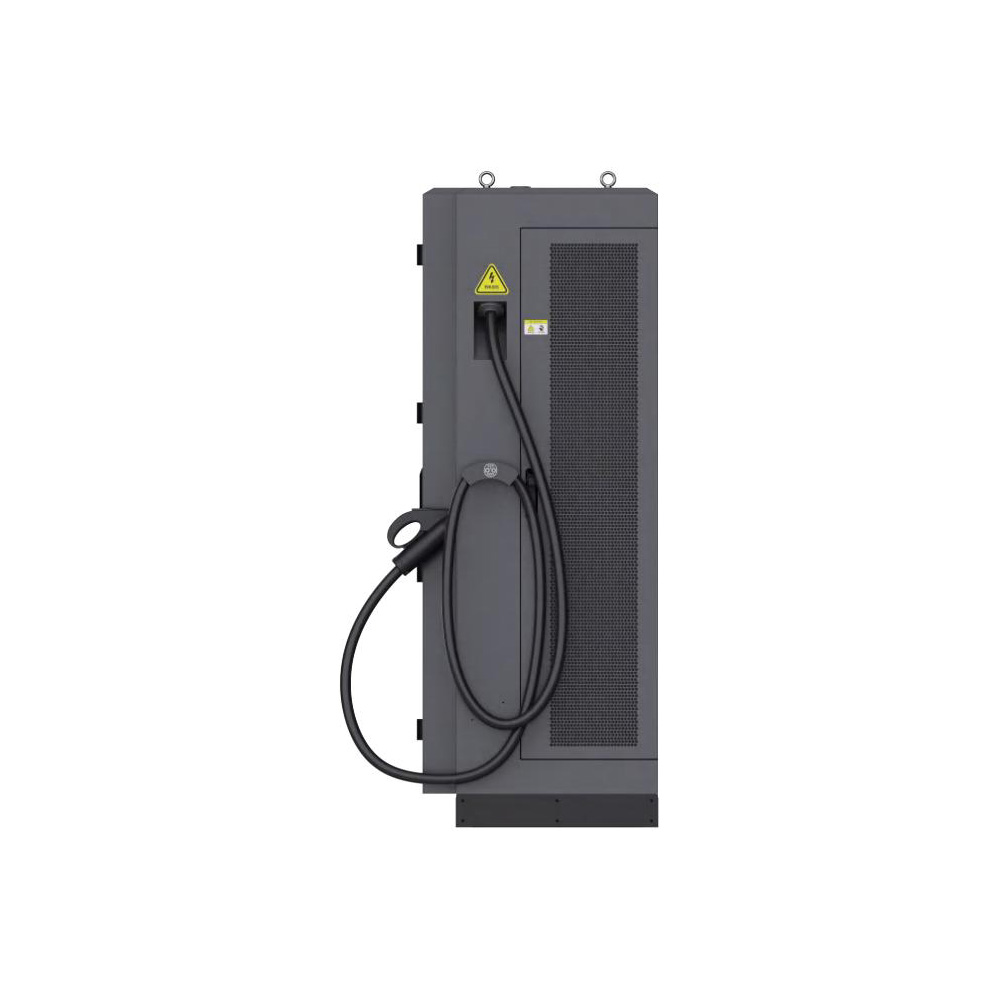

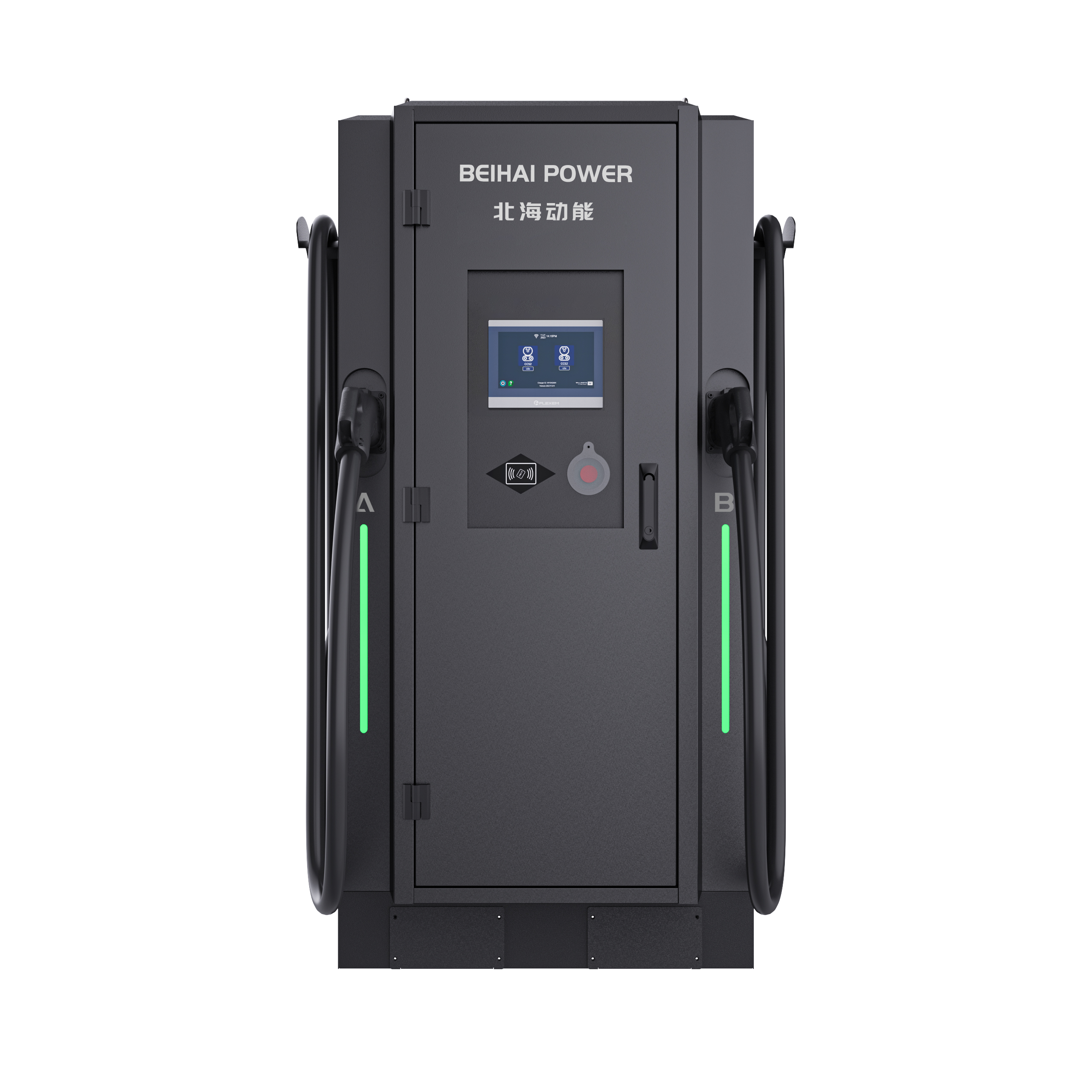

This series of dc ev charging stations boasts a rugged design and can be scaled up to 240kW (liquid cooled DC EV charging pile 480KW). The dc fast charging piles feature fast charging speeds and support dual-gun charging, enabling quick charging for high-power, large-battery-capacity vehicles.
Equipped with an advanced control system and communication module, supporting functions such as intelligent scheduling, remote monitoring, and fault diagnosis.
Supports connectivity with major mainstream charging pile management platforms. Operators can monitor real-time operating status and perform remote maintenance.
| Category | Specifications | Data Parameters |
| Appearance Structure | Dimensions (L x D x H) | 900mm x 700mm x 1900mm |
| Weight | 400kg | |
| Length of charging cable | 5m | |
| Connectors | CCS1 || CCS2 || CHAdeMO || GBT || NACS | |
| Electrical Indicators | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC (Constant power: 300 - 1000VDC) | |
| Output current (Air Cooled) | CCS1–200A || CCS2–200A || CHAdeMO–150A || GBT-250A || NACS–200A | |
| Output current (liquid cooled) | CCS2–500A || GBT-800A || GBT-600A || GBT-400A | |
| Rated power | 240-480kW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional Design | Display RFID system | 7’’ LCD with touch screen ISO/IEC 14443A/B |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
| Power Electronics Cooling | Air Cooled || Liquid cooled | |
| Work Environment | Operating temperature | -30 °C to 55°C |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety Design | Safety standard | GB/T, CCS2, CCS1, CHAdeMo, NACS |
| Safety protection | Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
