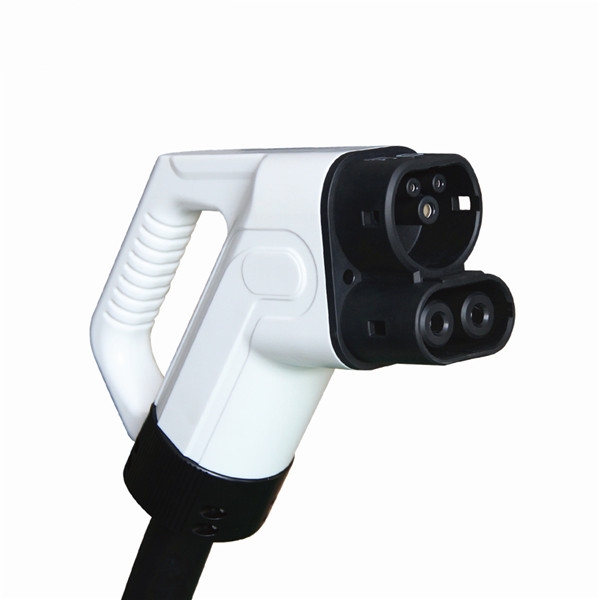

The 200A CCS2 EV Charging Connector is an advanced, high-performance solution for DC fast charging of electric vehicles. Designed for both public and private charging stations, this connector offers ultra-fast charging capabilities, significantly reducing charging time compared to traditional AC charging. With its CCS2 Type 2 interface, it is compatible with a wide range of electric vehicles (EVs) across the globe, particularly in the European and Middle Eastern markets.
Capable of supporting up to 200A, this connector ensures that vehicles are charged rapidly, providing an optimal solution for commercial, fleet, and high-traffic locations. Whether installed at a highway rest stop, shopping center, or electric vehicle fleet depot, the 200A CCS2 Charging Connector is built to withstand heavy usage while delivering a reliable and fast charge every time.
| Charger Connector Features | Meet 62196-3 IEC 2011 SHEET 3-Im standard |
| Concise appearance, support back installation | |
| Back Protection class IP55 | |
| Mechanical properties | Mechanical life : no-load plug in/pull out ＞10000 times |
| Impact of external force: can afford 1m drop and 2t vehicle run over pressure | |
| Electrical Performance | DC input: 80A, 125A, 150A, 200A 1000V DC MAX |
| AC input: 16A 32A 63A 240/415V AC MAX | |
| Insulation resistance: ＞2000MΩ (DC1000V) | |
| Terminal temperature rise: ＜50K | |
| Withstand Voltage: 3200V | |
| Contact resistance: 0.5mΩ Max | |
| Applied Materials | Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| Pin: Copper alloy, silver + thermoplastic on the top | |
| Environmental performance | Operating temperature: -30°C ~ +50°C |
| Model | Rated Current | Cable Specification | Cable Color |
|---|---|---|---|
| CCS2-EV200P | 200A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| CCS2-EV150P | 150A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| CCS2-EV125P | 125A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| CCS2-EV80P | 80A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
The 200A CCS2 Charging Connector is an ideal solution for DC fast-charging stations that prioritize speed, reliability, and safety. Whether it's powering up a single vehicle or handling high volumes of EVs in a busy charging network, this connector is engineered to meet the demands of the growing electric vehicle market while supporting the transition toward sustainable energy.
