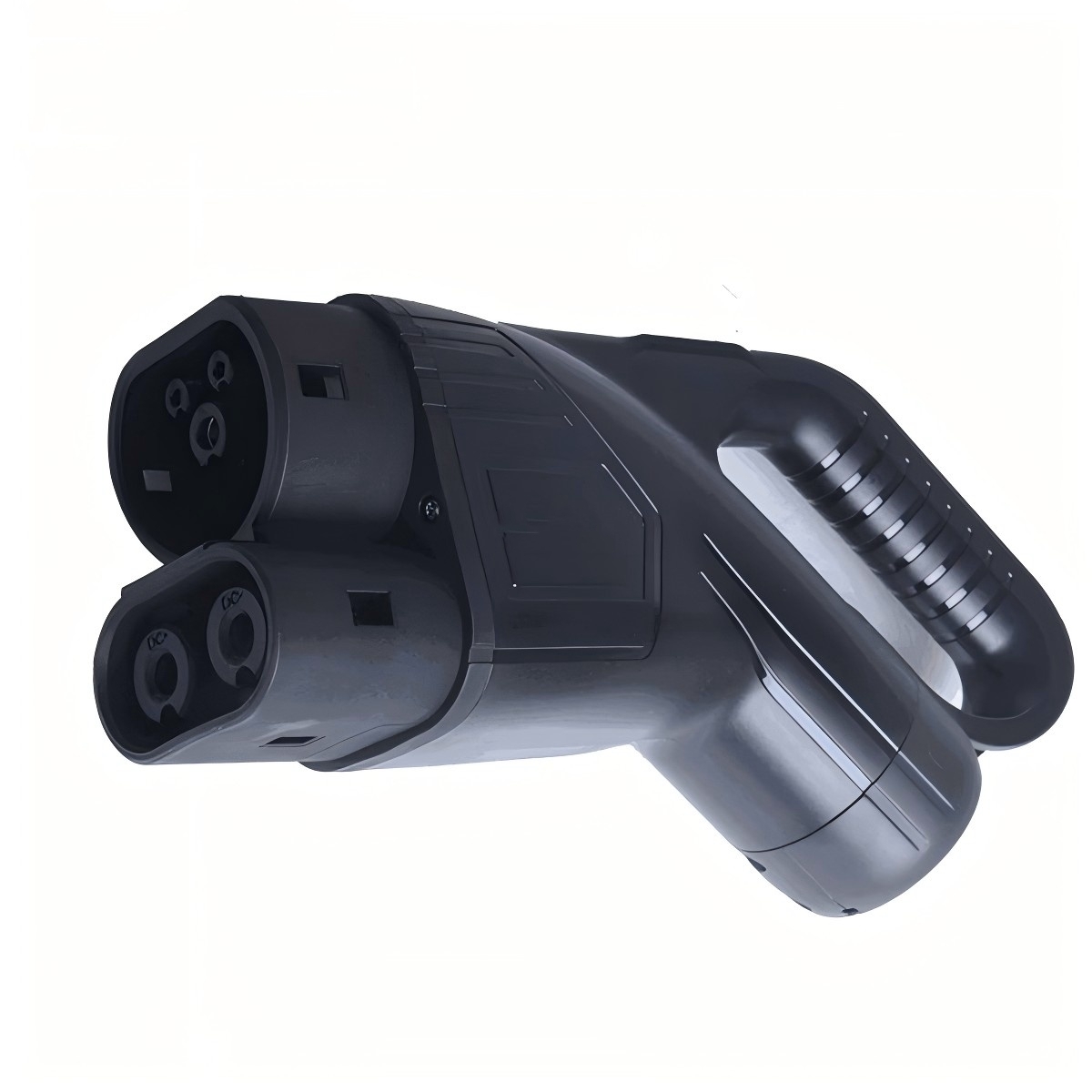

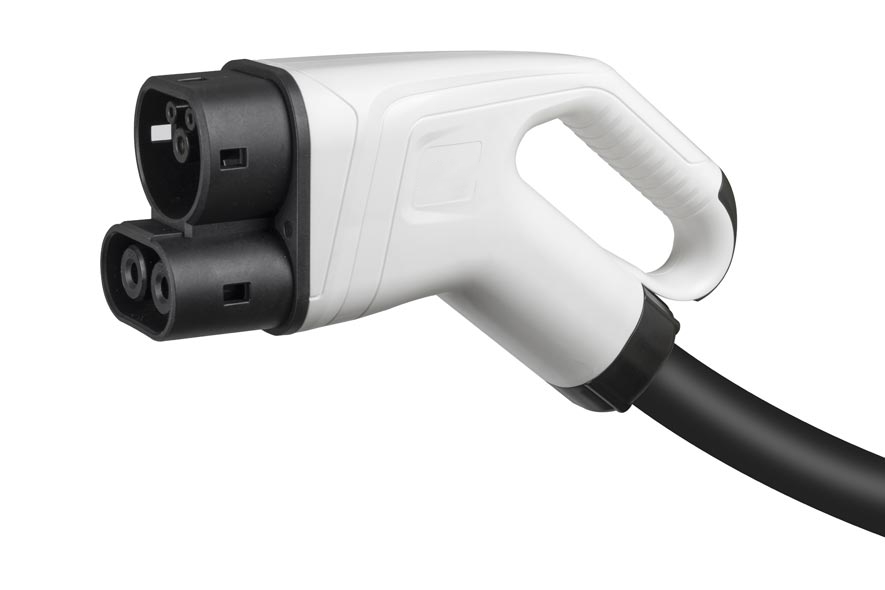

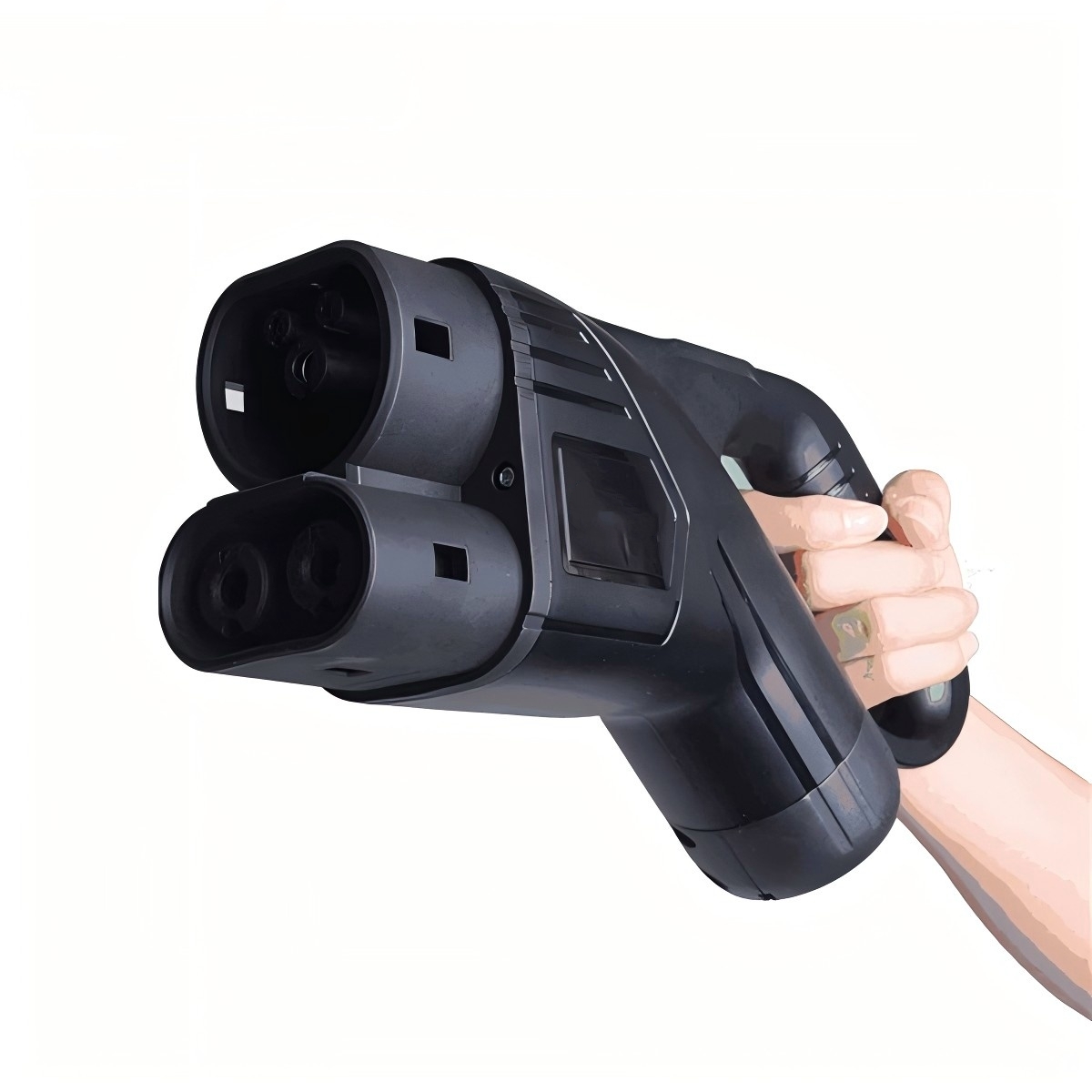

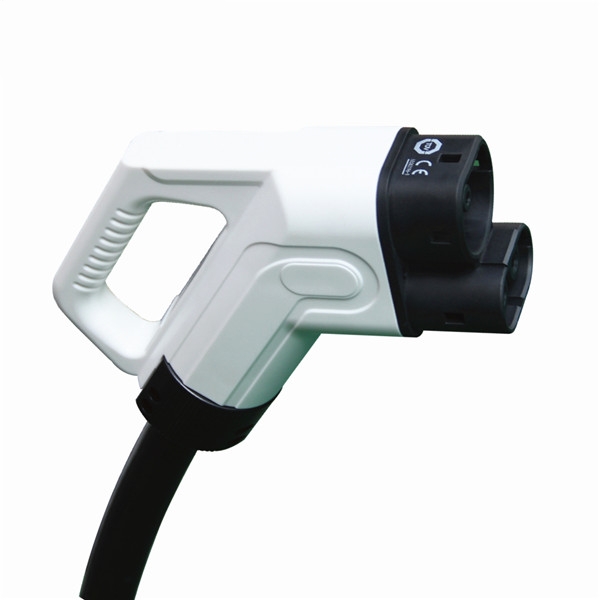

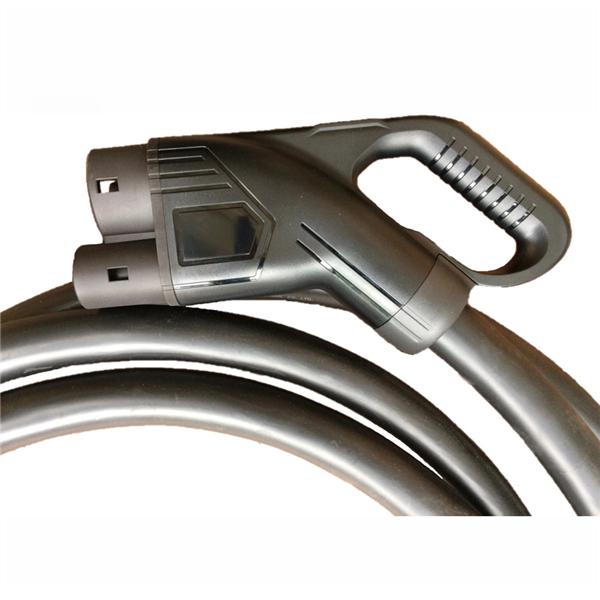

The 400A CCS2 EV Charging Liquid-Cooled Charging Gun is an advanced, high-performance solution for DC fast charging of electric vehicles. Designed for both public and private charging stations, this connector offers ultra-fast charging capabilities, significantly reducing charging time compared to traditional AC charging. With its CCS2 Type 2 interface, it is compatible with a wide range of electric vehicles (EVs) across the globe, particularly in the European and Middle Eastern markets. Capable of supporting up to 200A, this connector ensures that vehicles are charged rapidly, providing an optimal solution for commercial, fleet, and high-traffic locations. Whether installed at a highway rest stop, shopping center, or electric vehicle fleet depot, the 200A CCS2 Charging Connector is built to withstand heavy usage while delivering a reliable and fast charge every time.
EV Charger Connector Details
| Category |
Specifications |
| Charger Connector Features |
Meet 62196-3 IEC 2011 SHEET 3-Im standard |
| Concise appearance, support back installation |
| Back Protection class IP55 |
| Mechanical Properties |
Mechanical life: no-load plug in/pull out > 10000 times |
| Impact of external force: can afford 1m drop and 2t vehicle run over pressure |
| Electrical Performance |
DC input: 80A, 125A, 150A, 200A, 400A, 1000V DC MAX |
| AC input: 16A 32A 63A 240/415V AC MAX |
| Insulation resistance: > 2000MΩ (DC1000V) |
| Terminal temperature rise: < 50K |
| Withstand Voltage: 3200V |
| Contact resistance: 0.5mΩ Max |
| Applied Materials |
Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| Pin: Copper alloy, silver + thermoplastic on the top |
| Environmental Performance |
Operating temperature: -30°C ~ +50°C |
Model Selection and Standard Wiring
| Model |
Rated Current |
Cable Specification |
Color |

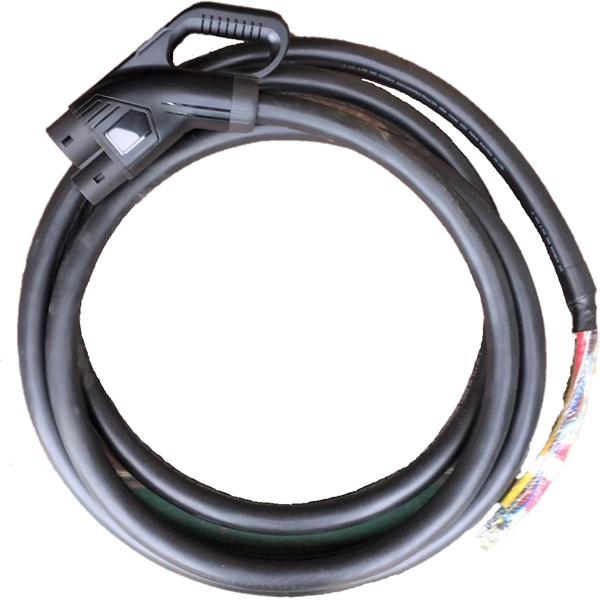

| CCS2-EV400P |
400A |
2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² |
Black or customized |
| CCS2-EV200P |
200A |
2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² |
Black or customized |
| CCS2-EV150P |
150A |
2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² |
Black or customized |
| CCS2-EV125P |
125A |
2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² |
Black or customized |
| CCS2-EV80P |
80A |
2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² |
Black or customized |
Charger Connector Key Features
⚡
High Power Capacity
Supports charging up to 400A, ensuring quick power delivery and reduced downtime for electric vehicles.
🛡️
Durability and Robust Design
Engineered to endure challenging weather conditions and frequent use, making it ideal for both indoor and outdoor installations.
🌍
Universal Compatibility
The CCS2 Type 2 plug is designed to work with most modern electric vehicles that feature the CCS2 charging standard.
🔒
Safety Features
Equipped with built-in safety mechanisms including overcurrent protection, temperature control, and an automatic locking system.
🚀
Efficient Charging
Ensures minimal downtime for EVs, promoting a smooth, fast, and hassle-free user experience for owners and drivers.
The 200A CCS2 Charging Connector is an ideal solution for DC fast-charging stations that prioritize speed, reliability, and safety. Whether it's powering up a single vehicle or handling high volumes of EVs in a busy charging network, this connector is engineered to meet the demands of the growing electric vehicle market while supporting the transition toward sustainable energy.
Frequently Asked Questions
What is the advantage of a liquid-cooled charging gun?
Liquid cooling allows the charging cable and connector to handle much higher currents (up to 400A or more) without overheating. This results in thinner, lighter cables that are easier to handle while providing significantly faster charging speeds.
Is this CCS2 connector compatible with all electric vehicles?
It is compatible with all EVs that use the CCS2 (Combined Charging System Type 2) standard, which is the primary standard in Europe, the Middle East, and many other regions.
What is the waterproof rating of this charging connector?
The connector features an IP55 protection rating, ensuring it is protected against dust and water ingress, making it suitable for outdoor installation and use in various weather conditions.
How durable is the charging gun against physical impact?
The gun is designed to withstand a 1-meter drop onto a hard surface and can afford the pressure of a 2-ton vehicle running over it, ensuring long-term durability in busy commercial environments.
Does the connector support different current levels?
Yes, the series includes models supporting various DC input levels including 80A, 125A, 150A, 200A, and up to 400A to meet different station requirements.
What safety protections are integrated into the design?
The connector includes terminal temperature rise monitoring (limited to < 50K), high insulation resistance, and flame-retardant materials (UL94 V-0) to ensure user and vehicle safety during high-power sessions.
