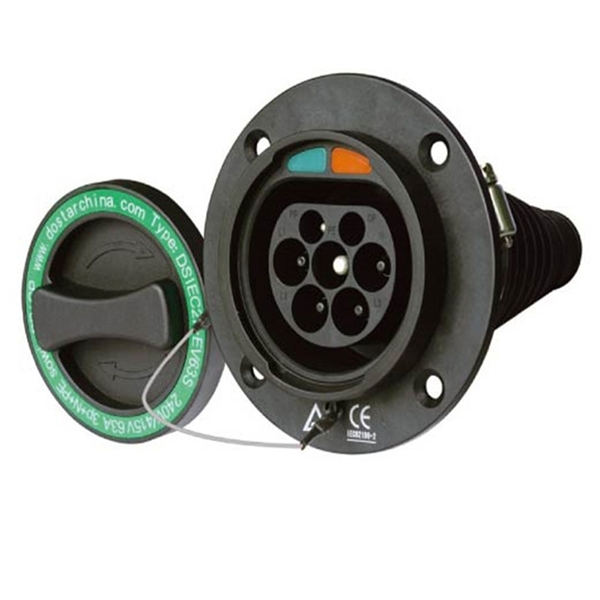

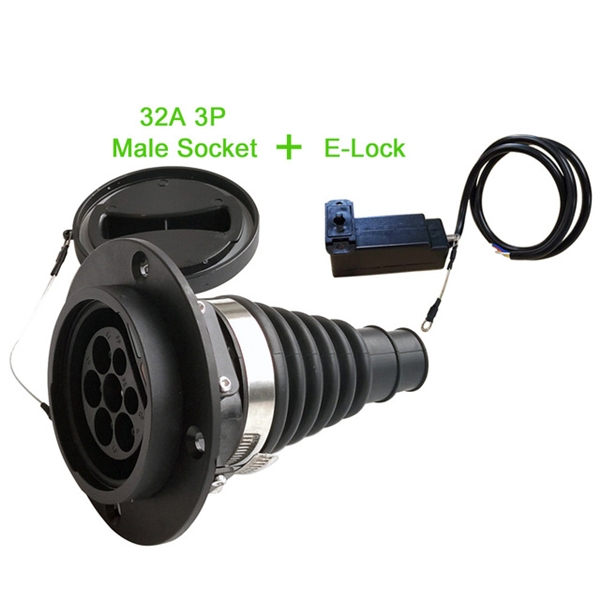

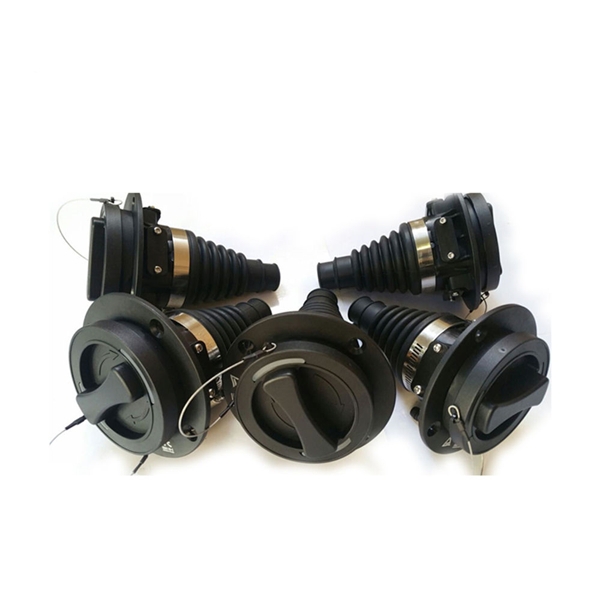

The 3-Phase 16A/32A Type 2 Inlet Male EV Charger Socket is an efficient and durable charging solution designed for AC EV charging stations. Offering both 16A and 32A power options, this socket supports 3-phase charging, delivering faster and more reliable power to electric vehicles. Compatible with the widely adopted Type 2 inlet (IEC 62196-2), it works seamlessly with most electric vehicle models.
Built with high-quality materials, the socket is weather-resistant and ideal for both indoor and outdoor installations, ensuring long-term durability and safe charging. The 32A option provides up to 22kW of power, significantly reducing charging times. Whether for residential, commercial, or public charging stations, this socket provides a secure, efficient, and sustainable charging experience.
| Category | Specifications |
|---|---|
| Charger Socket Features | Meet 62196-2 IEC 2010 SHEET 2-IIf standard |
| Nice appearance, with protection cover, support front installation | |

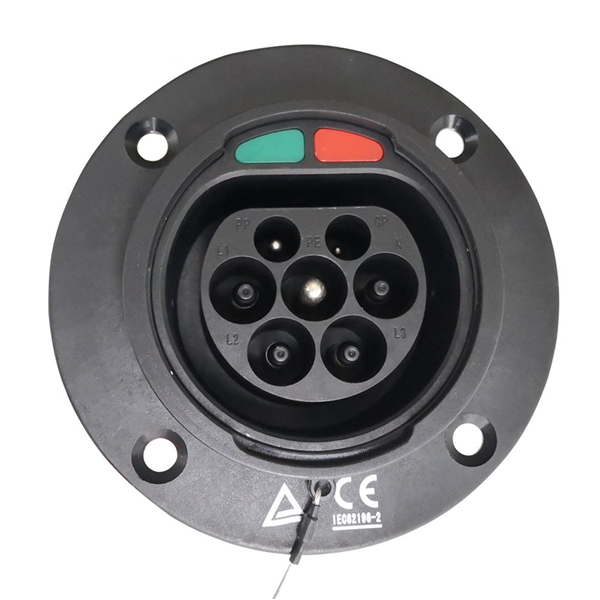

| Safety pins insulated head design to prevent accidental direct contact with staff | |
| Excellent protection performance, protection grade IP44 (working condition) | |
| Mechanical properties | Mechanical life: no-load plug in/pull out > 5000 times |
| Coupled insertion force: > 45N < 80N | |
| Electrical Performance | Rated current: 16A/32A |
| Operation voltage: 250V/415V | |
| Insulation resistance: > 1000MΩ (DC500V) | |
| Terminal temperature rise: < 50K | |
| Withstand Voltage: 2000V | |
| Contact Resistance: 0.5mΩ Max | |
| Applied Materials | Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| Pin: Copper alloy, silver + thermoplastic on the top | |
| Environmental performance | Operating temperature: -30°C ~ +50°C |
| Charger Socket Model | Rated Current | Cable Specification |
|---|---|---|
| BH-DSIEC2f-EV16S | 16A Single phase | 3 X 2.5mm² + 2 X 0.75mm² |
| 16A Three phase | 5 X 2.5mm² + 2 X 0.75mm² | |
| BH-DSIEC2f-EV32S | 32A Single phase | 3 X 6mm² + 2 X 0.75mm² |
| 32A Three phase | 5 X 6mm² + 2 X 0.75mm² |
Supports 3-phase power input, ensuring faster and more efficient charging compared to single-phase options. Available in 16A and 32A variants.
Equipped with the IEC 62196-2 standard connector, the most widely adopted type for EVs in Europe, ensuring broad compatibility.
Weather-resistant materials with safety mechanisms including overload and overcurrent protection for secure operation in any environment.
The 32A option allows for up to 22kW power delivery, significantly reducing overall charging time for increased convenience.
Easy to install and compatible with various AC charging stations, making it flexible for residential and commercial use.
Promotes green energy and sustainable transportation by providing a safe and quick way for EV owners to power their vehicles.
The main difference is the power output capacity. The 16A version supports lower power delivery, while the 32A version can deliver up to 22kW on a 3-phase system, allowing for significantly faster charging times.
This socket follows the IEC 62196-2 (Type 2) standard, which is the standard connector for most electric vehicles in Europe and many other regions. Please check your vehicle's inlet type for compatibility.
Yes, it features a protection grade of IP44 under working conditions and is built with high-quality, weather-resistant thermoplastic materials, making it suitable for both indoor and outdoor use.
The socket includes insulated pin heads to prevent accidental direct contact, flame retardant materials (UL94 V-0), and is designed to handle high voltage and current with minimal temperature rise.
Yes, this socket specifically supports 3-phase charging, which provides a more balanced and faster power transfer compared to standard single-phase charging.
The socket is designed to operate reliably in a wide range of environments, with an operating temperature range of -30°C to +50°C.
